Step1: Product
Panasonic Industry 2SD1423ARA

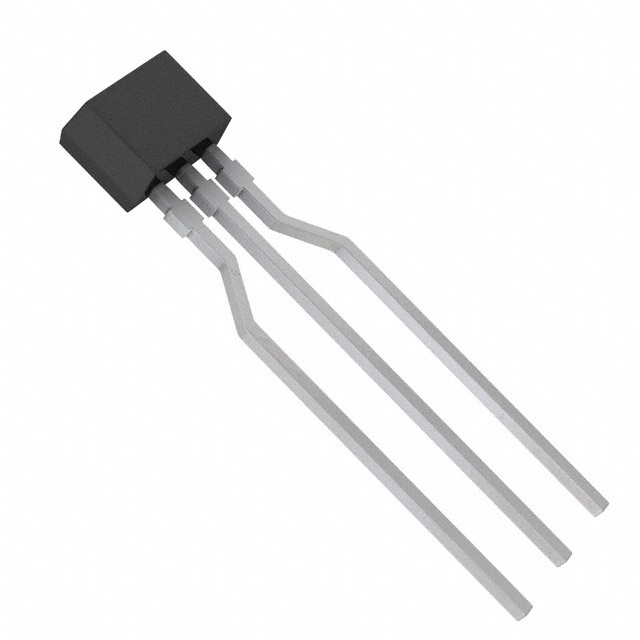

Image shown is a representation only
Manufacturer
Manufacturer No
2SD1423ARA
Package
3-SIP
Packaging
Tape & Box (TB)
Description
TRANS NPN 50V 0.5A NS-B1
Detailed Description
Bipolar (BJT) Transistor NPN 50 V 500 mA 200MHz 300 mW Through Hole NS-B1
DataSheet
Mfr
Panasonic Industry
Packaging
Tape & Box (TB)
Part Status
Obsolete
Power - Max
300 mW
Mounting Type
Through Hole
Package / Case
3-SIP
Transistor Type
NPN
Base Product Number
2SD1423
Operating Temperature
150°C (TJ)
Frequency - Transition
200MHz
Supplier Device Package
NS-B1
Vce Saturation (Max) @ Ib, Ic
600mV @ 30mA, 300mA
Current - Collector (Ic) (Max)
500 mA
Current - Collector Cutoff (Max)
1µA
DC Current Gain (hFE) (Min) @ Ic, Vce
120 @ 150mA, 10V
Voltage - Collector Emitter Breakdown (Max)
50 V
| Attribute | Value |
|---|---|
| Mfr | Panasonic Industry |
| Packaging | Tape & Box (TB) |
| Part Status | Obsolete |
| Power - Max | 300 mW |
| Mounting Type | Through Hole |
| Package / Case | 3-SIP |
| Transistor Type | NPN |
| Base Product Number | 2SD1423 |
| Operating Temperature | 150°C (TJ) |
| Frequency - Transition | 200MHz |
| Supplier Device Package | NS-B1 |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 30mA, 300mA |
| Current - Collector (Ic) (Max) | 500 mA |
| Current - Collector Cutoff (Max) | 1µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 150mA, 10V |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
