Step1: Product
Panasonic Industry 2SC3940ASA

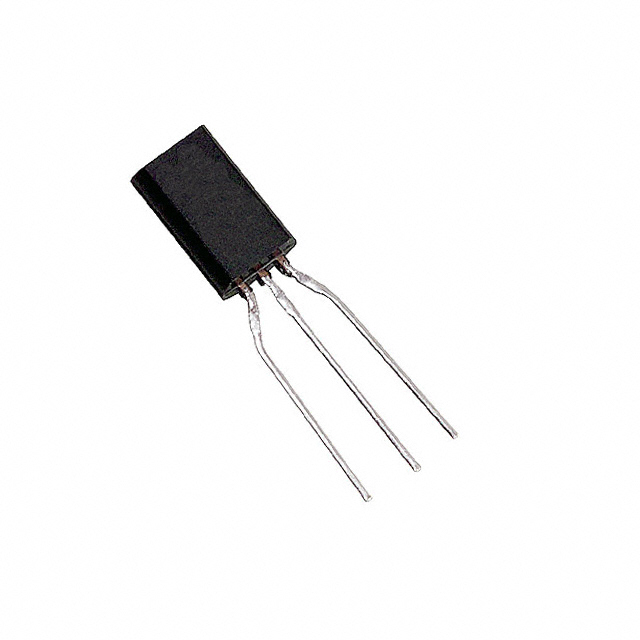

Image shown is a representation only
Manufacturer
Manufacturer No
2SC3940ASA
Package
TO-226-3, TO-92-3 Long Body
Packaging
Tape & Box (TB)
Description
TRANS NPN 50V 1A TO-92NL-A1
Detailed Description
Bipolar (BJT) Transistor NPN 50 V 1 A 200MHz 1 W Through Hole TO-92NL-A1
Mfr
Panasonic Industry
Packaging
Tape & Box (TB)
Part Status
Obsolete
Power - Max
1 W
Mounting Type
Through Hole
Package / Case
TO-226-3, TO-92-3 Long Body
Transistor Type
NPN
Base Product Number
2SC3940
Operating Temperature
150°C (TJ)
Frequency - Transition
200MHz
Supplier Device Package
TO-92NL-A1
Vce Saturation (Max) @ Ib, Ic
400mV @ 50mA, 500mA
Current - Collector (Ic) (Max)
1 A
Current - Collector Cutoff (Max)
100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce
170 @ 500mA, 10V
Voltage - Collector Emitter Breakdown (Max)
50 V
| Attribute | Value |
|---|---|
| Mfr | Panasonic Industry |
| Packaging | Tape & Box (TB) |
| Part Status | Obsolete |
| Power - Max | 1 W |
| Mounting Type | Through Hole |
| Package / Case | TO-226-3, TO-92-3 Long Body |
| Transistor Type | NPN |
| Base Product Number | 2SC3940 |
| Operating Temperature | 150°C (TJ) |
| Frequency - Transition | 200MHz |
| Supplier Device Package | TO-92NL-A1 |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 50mA, 500mA |
| Current - Collector (Ic) (Max) | 1 A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 170 @ 500mA, 10V |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
