Panasonic Industry 2SC3507

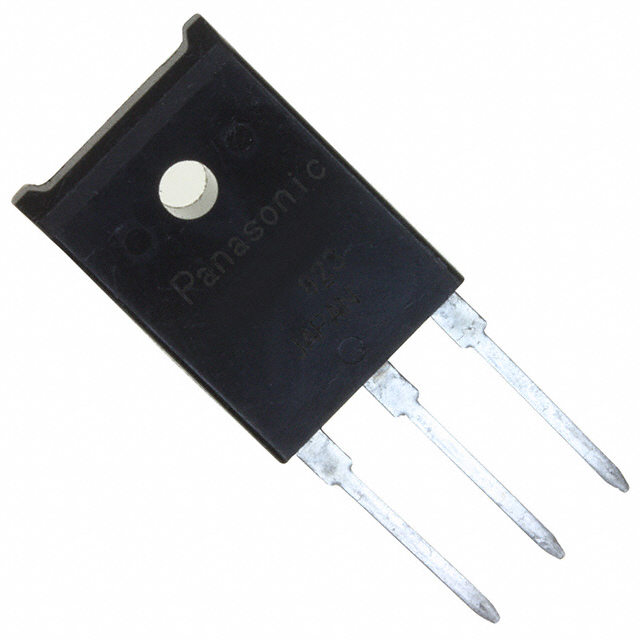

Image shown is a representation only
Manufacturer
Manufacturer No
2SC3507
Package
TOP-3F
Packaging
Bulk
Description
TRANS NPN 800V 5A TOP-3F-A1
Detailed Description
Bipolar (BJT) Transistor NPN 800 V 5 A 6MHz 3 W Through Hole TOP-3F-A1
DataSheet
Mfr
Panasonic Industry
Packaging
Bulk
Part Status
Obsolete
Power - Max
3 W
Mounting Type
Through Hole
Package / Case
TOP-3F
Transistor Type
NPN
Base Product Number
2SC350
Operating Temperature
150°C (TJ)
Frequency - Transition
6MHz
Supplier Device Package
TOP-3F-A1
Vce Saturation (Max) @ Ib, Ic
1.5V @ 600mA, 3A
Current - Collector (Ic) (Max)
5 A
Current - Collector Cutoff (Max)
50µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce
6 @ 3A, 5V
Voltage - Collector Emitter Breakdown (Max)
800 V
| Attribute | Value |
|---|---|
| Mfr | Panasonic Industry |
| Packaging | Bulk |
| Part Status | Obsolete |
| Power - Max | 3 W |
| Mounting Type | Through Hole |
| Package / Case | TOP-3F |
| Transistor Type | NPN |
| Base Product Number | 2SC350 |
| Operating Temperature | 150°C (TJ) |
| Frequency - Transition | 6MHz |
| Supplier Device Package | TOP-3F-A1 |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 600mA, 3A |
| Current - Collector (Ic) (Max) | 5 A |
| Current - Collector Cutoff (Max) | 50µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 6 @ 3A, 5V |
| Voltage - Collector Emitter Breakdown (Max) | 800 V |
