NXP USA Inc. NX3L4684TK,115

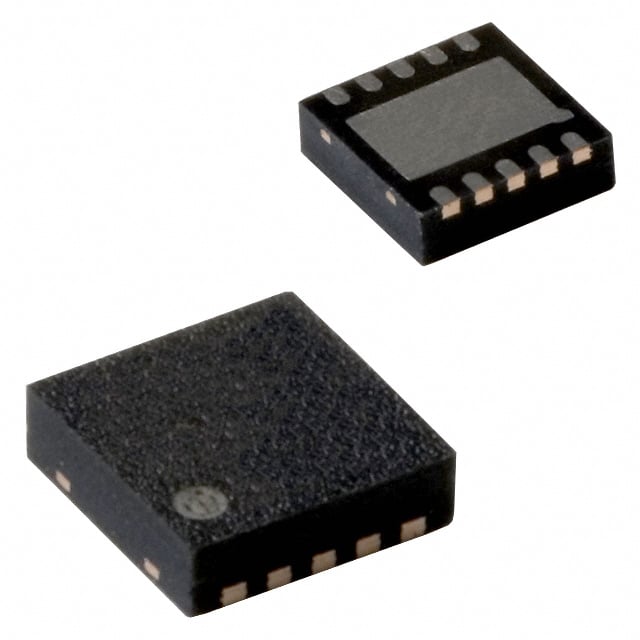

Image shown is a representation only
Manufacturer
Manufacturer No
NX3L4684TK,115
Package
10-VFDFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IC SWITCH SPDTX2 750MOHM 10HVSON
Detailed Description
2 Circuit IC Switch 2:1 750mOhm 10-HVSON (3x3)
Datasheet
Crosstalk
-90dB @ 100kHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Manufacturer
NXP USA Inc.
Mounting Type
Surface Mount
-3db Bandwidth
20MHz
Package / Case
10-VFDFN Exposed Pad
Switch Circuit
SPDT
Charge Injection
50pC
Number of Circuits
2
Base Product Number
NX3L4684
Operating Temperature
-40°C ~ 125°C (TA)
Supplier Device Package
10-HVSON (3x3)
On-State Resistance (Max)
750mOhm
Switch Time (Ton, Toff) (Max)
45ns, 20ns
Voltage - Supply, Single (V+)
1.4V ~ 4.3V
Current - Leakage (IS(off)) (Max)
10nA
Multiplexer/Demultiplexer Circuit
2:1
Channel-to-Channel Matching (ΔRon)
40mOhm
Channel Capacitance (CS(off), CD(off))
35pF
| Attribute | Value |
|---|---|
| Crosstalk | -90dB @ 100kHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Manufacturer | NXP USA Inc. |
| Mounting Type | Surface Mount |
| -3db Bandwidth | 20MHz |
| Package / Case | 10-VFDFN Exposed Pad |
| Switch Circuit | SPDT |
| Charge Injection | 50pC |
| Number of Circuits | 2 |
| Base Product Number | NX3L4684 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Supplier Device Package | 10-HVSON (3x3) |
| On-State Resistance (Max) | 750mOhm |
| Switch Time (Ton, Toff) (Max) | 45ns, 20ns |
| Voltage - Supply, Single (V+) | 1.4V ~ 4.3V |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ΔRon) | 40mOhm |
| Channel Capacitance (CS(off), CD(off)) | 35pF |
