Step1: Product
NXP USA Inc. NX3L2267GM,115

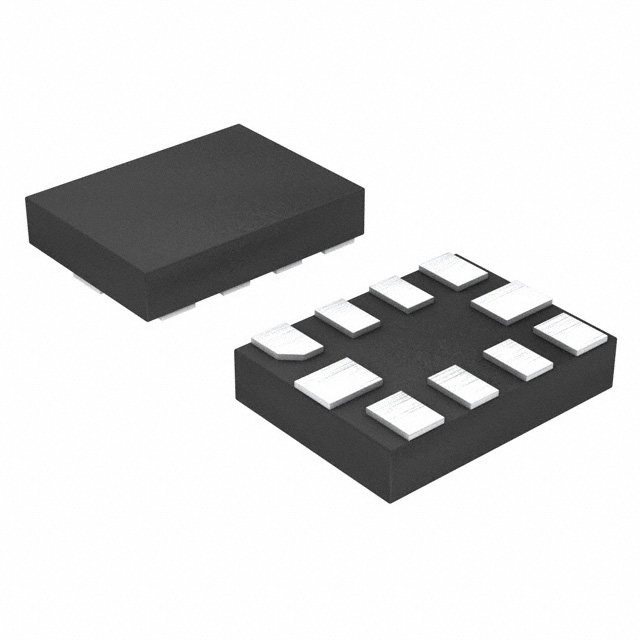

Image shown is a representation only
Manufacturer
Manufacturer No
NX3L2267GM,115
Quantity
38
Availability
In Stock
Package
10-XFQFN
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC SWITCH SPDTX2 750MOHM 10XQFN
Detailed Description
2 Circuit IC Switch 2:1 750mOhm 10-XQFN (1.55x2)
DataSheet
Crosstalk
-90dB @ 100kHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
NXP USA Inc.
Mounting Type
Surface Mount
-3db Bandwidth
60MHz
Package / Case
10-XFQFN
Switch Circuit
SPDT
Charge Injection
37pC
Number of Circuits
2
Base Product Number
NX3L2267
Operating Temperature
-40°C ~ 125°C (TA)
Supplier Device Package
10-XQFN (1.55x2)
On-State Resistance (Max)
750mOhm
Switch Time (Ton, Toff) (Max)
40ns, 20ns
Voltage - Supply, Single (V+)
1.4V ~ 4.3V
Current - Leakage (IS(off)) (Max)
10nA
Multiplexer/Demultiplexer Circuit
2:1
Channel-to-Channel Matching (ΔRon)
90mOhm
Channel Capacitance (CS(off), CD(off))
35pF
| Attribute | Value |
|---|---|
| Crosstalk | -90dB @ 100kHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | NXP USA Inc. |
| Mounting Type | Surface Mount |
| -3db Bandwidth | 60MHz |
| Package / Case | 10-XFQFN |
| Switch Circuit | SPDT |
| Charge Injection | 37pC |
| Number of Circuits | 2 |
| Base Product Number | NX3L2267 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Supplier Device Package | 10-XQFN (1.55x2) |
| On-State Resistance (Max) | 750mOhm |
| Switch Time (Ton, Toff) (Max) | 40ns, 20ns |
| Voltage - Supply, Single (V+) | 1.4V ~ 4.3V |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ΔRon) | 90mOhm |
| Channel Capacitance (CS(off), CD(off)) | 35pF |
