Nisshinbo Micro Devices Inc. NT1199HEAE4S-ES

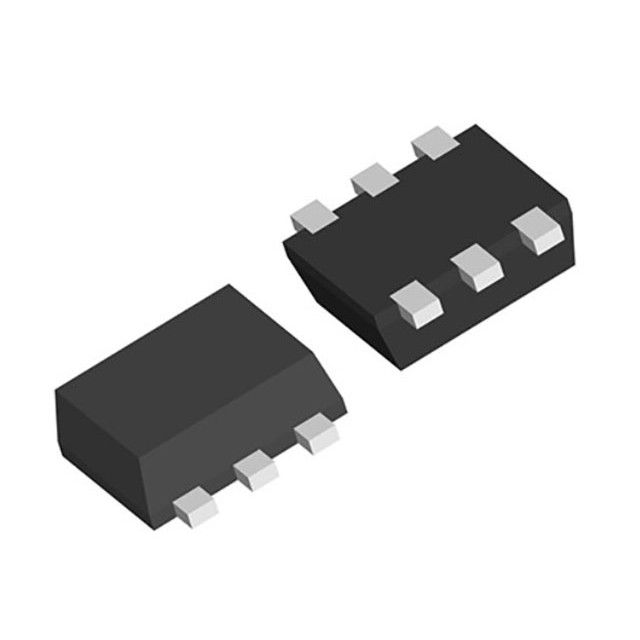

Image shown is a representation only
Manufacturer
Manufacturer No
NT1199HEAE4S-ES
Package
6-UFDFN
Packaging
Strip
Description
HIGH LINEARITY GNSS WIDEBAND LOW
Detailed Description
RF Amplifier IC BeiDou, Galileo, GLONASS, GNSS, GPS 1.164GHz ~ 1.61GHz SON-6-HE
DataSheet
Gain
17.5dB
P1dB
1.5dBm
RF Type
BeiDou, Galileo, GLONASS, GNSS, GPS
Frequency
1.164GHz ~ 1.61GHz
Packaging
Strip
Part Status
Active
Manufacturer
Nisshinbo Micro Devices Inc.
Noise Figure
0.7dB
Mounting Type
Surface Mount
Package / Case
6-UFDFN
Test Frequency
1.575GHz
Current - Supply
12mA
Voltage - Supply
1.5V ~ 5.5V
Supplier Device Package
SON-6-HE
| Attribute | Value |
|---|---|
| Gain | 17.5dB |
| P1dB | 1.5dBm |
| RF Type | BeiDou, Galileo, GLONASS, GNSS, GPS |
| Frequency | 1.164GHz ~ 1.61GHz |
| Packaging | Strip |
| Part Status | Active |
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Noise Figure | 0.7dB |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN |
| Test Frequency | 1.575GHz |
| Current - Supply | 12mA |
| Voltage - Supply | 1.5V ~ 5.5V |
| Supplier Device Package | SON-6-HE |
