Step1: Product
Nisshinbo Micro Devices Inc. NT1193FAAE2S

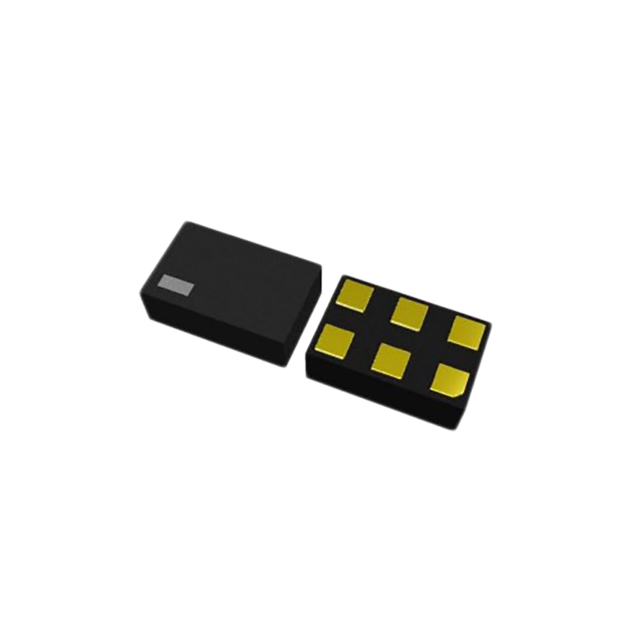

Image shown is a representation only
Manufacturer
Manufacturer No
NT1193FAAE2S
Package
6-XFDFN
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
GNSS WIDEBAND LOW NOISE AMPLIFIE
Detailed Description
RF Amplifier IC BeiDou, Galileo, GLONASS, GNSS, GPS 1.164GHz ~ 1.61GHz EPFFP6-FA
DataSheet
Gain
21.5dB
P1dB
-16dBm
RF Type
BeiDou, Galileo, GLONASS, GNSS, GPS
Frequency
1.164GHz ~ 1.61GHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
Nisshinbo Micro Devices Inc.
Noise Figure
0.7dB
Mounting Type
Surface Mount
Package / Case
6-XFDFN
Test Frequency
1.575GHz
Current - Supply
5mA
Voltage - Supply
1.5V ~ 3.7V
Supplier Device Package
EPFFP6-FA
| Attribute | Value |
|---|---|
| Gain | 21.5dB |
| P1dB | -16dBm |
| RF Type | BeiDou, Galileo, GLONASS, GNSS, GPS |
| Frequency | 1.164GHz ~ 1.61GHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Noise Figure | 0.7dB |
| Mounting Type | Surface Mount |
| Package / Case | 6-XFDFN |
| Test Frequency | 1.575GHz |
| Current - Supply | 5mA |
| Voltage - Supply | 1.5V ~ 3.7V |
| Supplier Device Package | EPFFP6-FA |
