Step1: Product

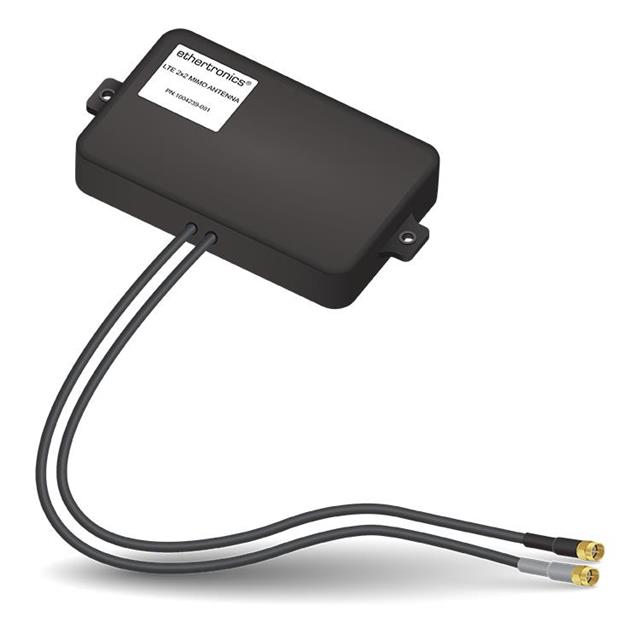

KYOCERA AVX 1004239-001
Image shown is a representation only
Manufacturer
Manufacturer No
1004239-001
Packaging
Box
Description
ANTENNA ASSY, LTE MIMO
Detailed Description
RF ANTENNA Cellular, LTE Cat 1, LTE-M, NB-IoT, loRa, SigFox Module SMA Male (2) Screw Mount
DataSheet
Gain
4dBi, 6.3dBi, 4.8dBi
VSWR
2.5
Features
Cable - 2m
Packaging
Box
Part Status
Active
Termination
SMA Male (2)
Antenna Type
Module
Applications
Cellular, LTE Cat 1, LTE-M, NB-IoT, loRa, SigFox
Height (Max)
0.677" (17.20mm)
Manufacturer
KYOCERA AVX
Mounting Type
Screw Mount
Frequency Group
Wide Band
Frequency Range
698MHz ~ 894MHz, 1.71GHz ~ 2.155GHz, 2.5GHz ~ 2.69GHz
Number of Bands
3
RF Family/Standard
Cellular
Frequency (Center/Band)
796MHz, 1.93GHz, 2.595GHz
| Attribute | Value |
|---|---|
| Gain | 4dBi, 6.3dBi, 4.8dBi |
| VSWR | 2.5 |
| Features | Cable - 2m |
| Packaging | Box |
| Part Status | Active |
| Termination | SMA Male (2) |
| Antenna Type | Module |
| Applications | Cellular, LTE Cat 1, LTE-M, NB-IoT, loRa, SigFox |
| Height (Max) | 0.677" (17.20mm) |
| Manufacturer | KYOCERA AVX |
| Mounting Type | Screw Mount |
| Frequency Group | Wide Band |
| Frequency Range | 698MHz ~ 894MHz, 1.71GHz ~ 2.155GHz, 2.5GHz ~ 2.69GHz |
| Number of Bands | 3 |
| RF Family/Standard | Cellular |
| Frequency (Center/Band) | 796MHz, 1.93GHz, 2.595GHz |
