Step1: Product

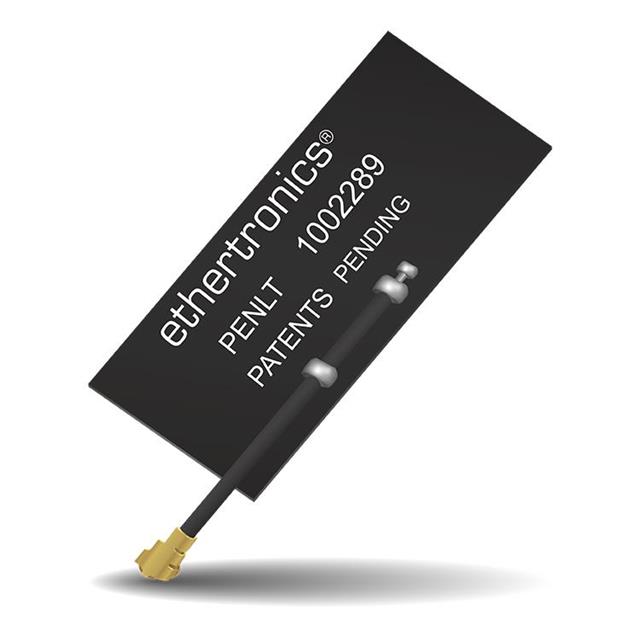

KYOCERA AVX 1002289F0-AA10L0100
Image shown is a representation only
Manufacturer
Manufacturer No
1002289F0-AA10L0100
Quantity
10
Availability
In Stock
Packaging
Bulk
Description
ANTENNA 100MM LTE/CELLULAR WIDE
Detailed Description
RF ANTENNA CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA Flat Patch U.FL (UMCC), I-PEX MHF1 Adhesive
DataSheet
VSWR
2.5
Series
Prestta™
Features
Cable - 100mm
Packaging
Bulk
Part Status
Active
Power - Max
2 W
Termination
U.FL (UMCC), I-PEX MHF1
Antenna Type
Flat Patch
Applications
CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA
Height (Max)
0.049" (1.25mm)
Manufacturer
KYOCERA AVX
Mounting Type
Adhesive
Frequency Group
Wide Band
Frequency Range
700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz
Number of Bands
8
RF Family/Standard
Cellular
Base Product Number
1002289
Frequency (Center/Band)
700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz
| Attribute | Value |
|---|---|
| VSWR | 2.5 |
| Series | Prestta™ |
| Features | Cable - 100mm |
| Packaging | Bulk |
| Part Status | Active |
| Power - Max | 2 W |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Antenna Type | Flat Patch |
| Applications | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
| Height (Max) | 0.049" (1.25mm) |
| Manufacturer | KYOCERA AVX |
| Mounting Type | Adhesive |
| Frequency Group | Wide Band |
| Frequency Range | 700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz |
| Number of Bands | 8 |
| RF Family/Standard | Cellular |
| Base Product Number | 1002289 |
| Frequency (Center/Band) | 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz |
