Step1: Product

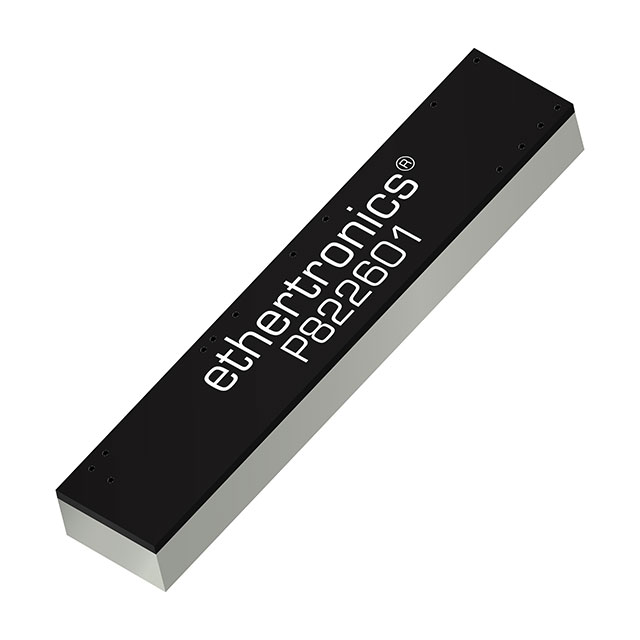

KYOCERA AVX P822601
Image shown is a representation only
Manufacturer
Manufacturer No
P822601
Quantity
4323
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
RF ANT 700MHZ/750MHZ FLAT BAR
Detailed Description
RF ANTENNA CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA Flat Bar Solder Surface Mount
DataSheet
Gain
1.1dBi, 1.7dBi, 1.8dBi, 2.2dBi, 3.9dBi, 3.8dBi, 3.4dBi, 3.6dBi
VSWR
2.5
Series
Prestta™
Packaging
Tape & Reel (TR); Cut Tape (CT)
Part Status
Active
Power - Max
2 W
Termination
Solder
Antenna Type
Flat Bar
Applications
CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA
Height (Max)
0.126" (3.20mm)
Manufacturer
KYOCERA AVX
Mounting Type
Surface Mount
Frequency Group
Wide Band
Frequency Range
700MHz ~ 787MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz
Number of Bands
8
RF Family/Standard
Cellular
Frequency (Center/Band)
700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz
| Attribute | Value |
|---|---|
| Gain | 1.1dBi, 1.7dBi, 1.8dBi, 2.2dBi, 3.9dBi, 3.8dBi, 3.4dBi, 3.6dBi |
| VSWR | 2.5 |
| Series | Prestta™ |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Part Status | Active |
| Power - Max | 2 W |
| Termination | Solder |
| Antenna Type | Flat Bar |
| Applications | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
| Height (Max) | 0.126" (3.20mm) |
| Manufacturer | KYOCERA AVX |
| Mounting Type | Surface Mount |
| Frequency Group | Wide Band |
| Frequency Range | 700MHz ~ 787MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz |
| Number of Bands | 8 |
| RF Family/Standard | Cellular |
| Frequency (Center/Band) | 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz |
