Step1: Product
Amphenol ICC (FCI) 10042867-40MB10ELF

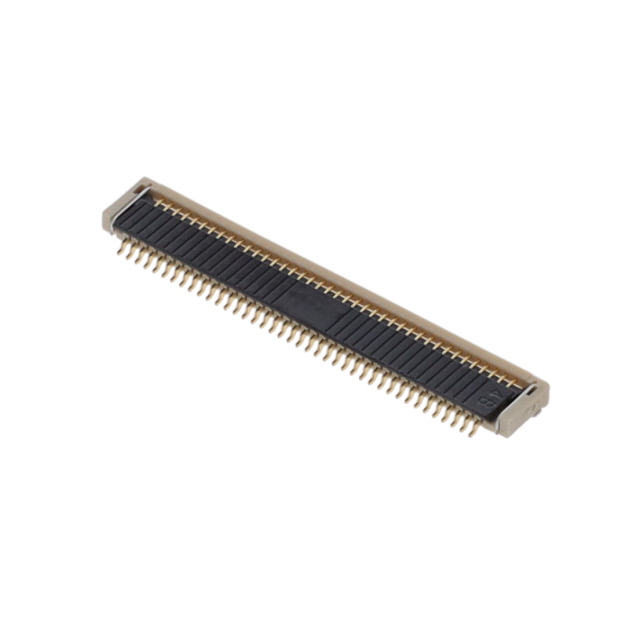

Image shown is a representation only
Manufacturer
Manufacturer No
10042867-40MB10ELF
Packaging
Tape & Reel (TR)
Description
CONN FPC BOTTOM 40POS 0.5MM R/A
Detailed Description
40 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
DataSheet
Pitch
0.020" (0.50mm)
Series
VLH
Features
Solder Retention, Zero Insertion Force (ZIF)
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Termination
Solder
Manufacturer
Amphenol ICC (FCI)
Housing Color
Natural
Mating Cycles
20
Mounting Type
Surface Mount, Right Angle
Actuator Color
Black
Cable End Type
Straight
Contact Finish
Gold
Flat Flex Type
FPC
Voltage Rating
50V
Locking Feature
Slide Lock
Contact Material
Phosphor Bronze
Housing Material
Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material
Liquid Crystal Polymer (LCP), Glass Filled
FFC, FCB Thickness
0.30mm
Height Above Board
0.051" (1.30mm)
Base Product Number
10042867
Number of Positions
40
Current Rating (Amps)
0.4A
Operating Temperature
-55°C ~ 85°C
Connector/Contact Type
Contacts, Bottom
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | VLH |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Termination | Solder |
| Manufacturer | Amphenol ICC (FCI) |
| Housing Color | Natural |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Black |
| Cable End Type | Straight |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 50V |
| Locking Feature | Slide Lock |
| Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Liquid Crystal Polymer (LCP), Glass Filled |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.051" (1.30mm) |
| Base Product Number | 10042867 |
| Number of Positions | 40 |
| Current Rating (Amps) | 0.4A |
| Operating Temperature | -55°C ~ 85°C |
| Connector/Contact Type | Contacts, Bottom |
| Material Flammability Rating | UL94 V-0 |
