Step1: Product

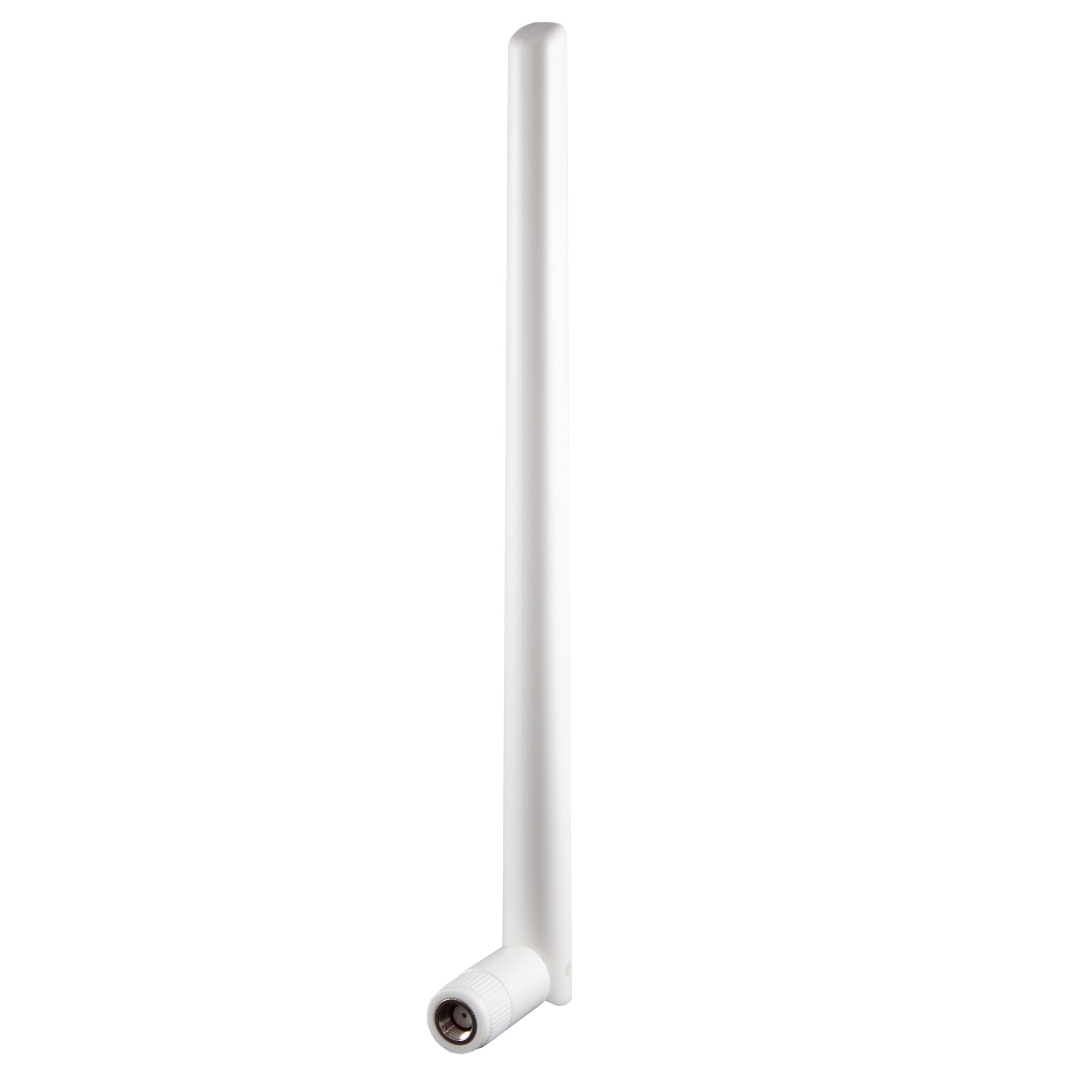

Joymax Electronics TWX-180BRS3W
Image shown is a representation only
Manufacturer
Manufacturer No
TWX-180BRS3W
Packaging
Bag
Description
ANT WIFI 7/6E TILT WHIP RP-SMA P
Detailed Description
RF ANTENNA 802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E Whip, Tilt RP-SMA Female Connector Mount
DataSheet
Gain
3.8dBi, 5.0dBi, 4.2dBi
VSWR
1.8, 2.0, 2.0
Series
180
Packaging
Bag
Part Status
Active
Power - Max
1 W
Return Loss
-10.9dB, -9.5dB, -9.5dB
Termination
RP-SMA Female
Antenna Type
Whip, Tilt
Applications
802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E
Height (Max)
7.992" (203.00mm)
Manufacturer
Joymax Electronics
Mounting Type
Connector Mount
Frequency Group
Wide Band
Frequency Range
2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
Number of Bands
3
RF Family/Standard
WiFi
Frequency (Center/Band)
2.45GHz, 5.5GHz, 6.525GHz
| Attribute | Value |
|---|---|
| Gain | 3.8dBi, 5.0dBi, 4.2dBi |
| VSWR | 1.8, 2.0, 2.0 |
| Series | 180 |
| Packaging | Bag |
| Part Status | Active |
| Power - Max | 1 W |
| Return Loss | -10.9dB, -9.5dB, -9.5dB |
| Termination | RP-SMA Female |
| Antenna Type | Whip, Tilt |
| Applications | 802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E |
| Height (Max) | 7.992" (203.00mm) |
| Manufacturer | Joymax Electronics |
| Mounting Type | Connector Mount |
| Frequency Group | Wide Band |
| Frequency Range | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz |
| Number of Bands | 3 |
| RF Family/Standard | WiFi |
| Frequency (Center/Band) | 2.45GHz, 5.5GHz, 6.525GHz |
