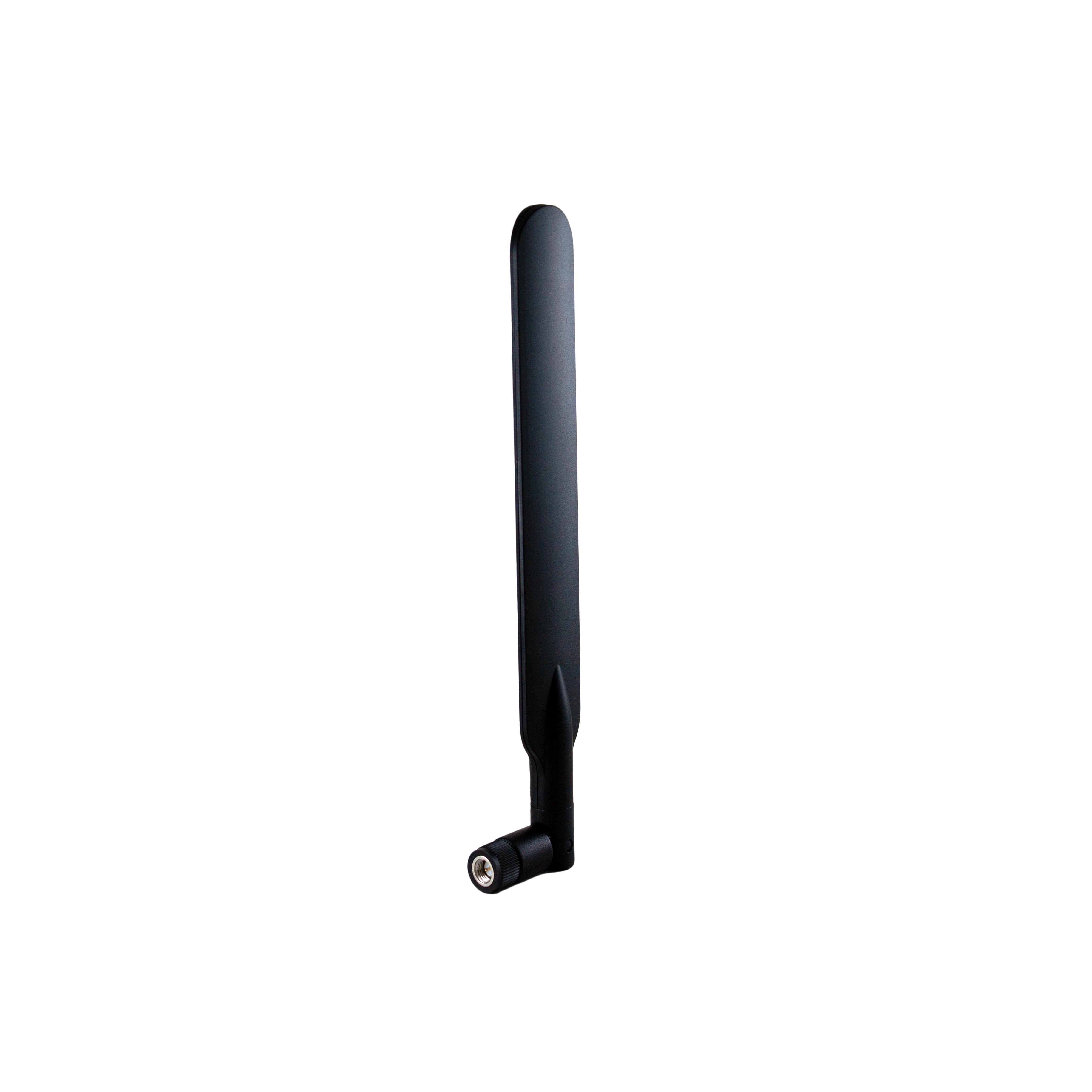

Joymax Electronics ZWX-6231RS4B
Image shown is a representation only
Manufacturer
Manufacturer No
ZWX-6231RS4B
Packaging
Bag
Description
ANT 5G BLADE RP-SMA PLUG FEMALE
Detailed Description
RF ANTENNA 2G, 3G, 4G, 5G, LTE Blade, Tilt RP-SMA Female Connector Mount
DataSheet
Gain
1.2dBi, 2dBi, 3.5dBi, 4dBi, 3dBi, 4.7dBi, 3.8dBi
VSWR
1.6, 2.6, 2.5, 1.7, 2, 1.8, 1.8
Series
6231
Packaging
Bag
Part Status
Active
Power - Max
1 W
Return Loss
-12.7dB, -7dB, -7.4dB, -11.7dB, -9.5dB, -10.9dB, -10.9dB
Termination
RP-SMA Female
Antenna Type
Blade, Tilt
Applications
2G, 3G, 4G, 5G, LTE
Height (Max)
8.071" (205.00mm)
Manufacturer
Joymax Electronics
Mounting Type
Connector Mount
Frequency Group
Wide Band
Frequency Range
450MHz, 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
Number of Bands
9
RF Family/Standard
Cellular
Frequency (Center/Band)
450MHz, 657.5MHz, 829MHz, 2.2GHz, 3.75GHz, 4.7GHz, 5.5GHz, 6.525GHz
| Attribute | Value |
|---|---|
| Gain | 1.2dBi, 2dBi, 3.5dBi, 4dBi, 3dBi, 4.7dBi, 3.8dBi |
| VSWR | 1.6, 2.6, 2.5, 1.7, 2, 1.8, 1.8 |
| Series | 6231 |
| Packaging | Bag |
| Part Status | Active |
| Power - Max | 1 W |
| Return Loss | -12.7dB, -7dB, -7.4dB, -11.7dB, -9.5dB, -10.9dB, -10.9dB |
| Termination | RP-SMA Female |
| Antenna Type | Blade, Tilt |
| Applications | 2G, 3G, 4G, 5G, LTE |
| Height (Max) | 8.071" (205.00mm) |
| Manufacturer | Joymax Electronics |
| Mounting Type | Connector Mount |
| Frequency Group | Wide Band |
| Frequency Range | 450MHz, 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz |
| Number of Bands | 9 |
| RF Family/Standard | Cellular |
| Frequency (Center/Band) | 450MHz, 657.5MHz, 829MHz, 2.2GHz, 3.75GHz, 4.7GHz, 5.5GHz, 6.525GHz |
