Step1: Product

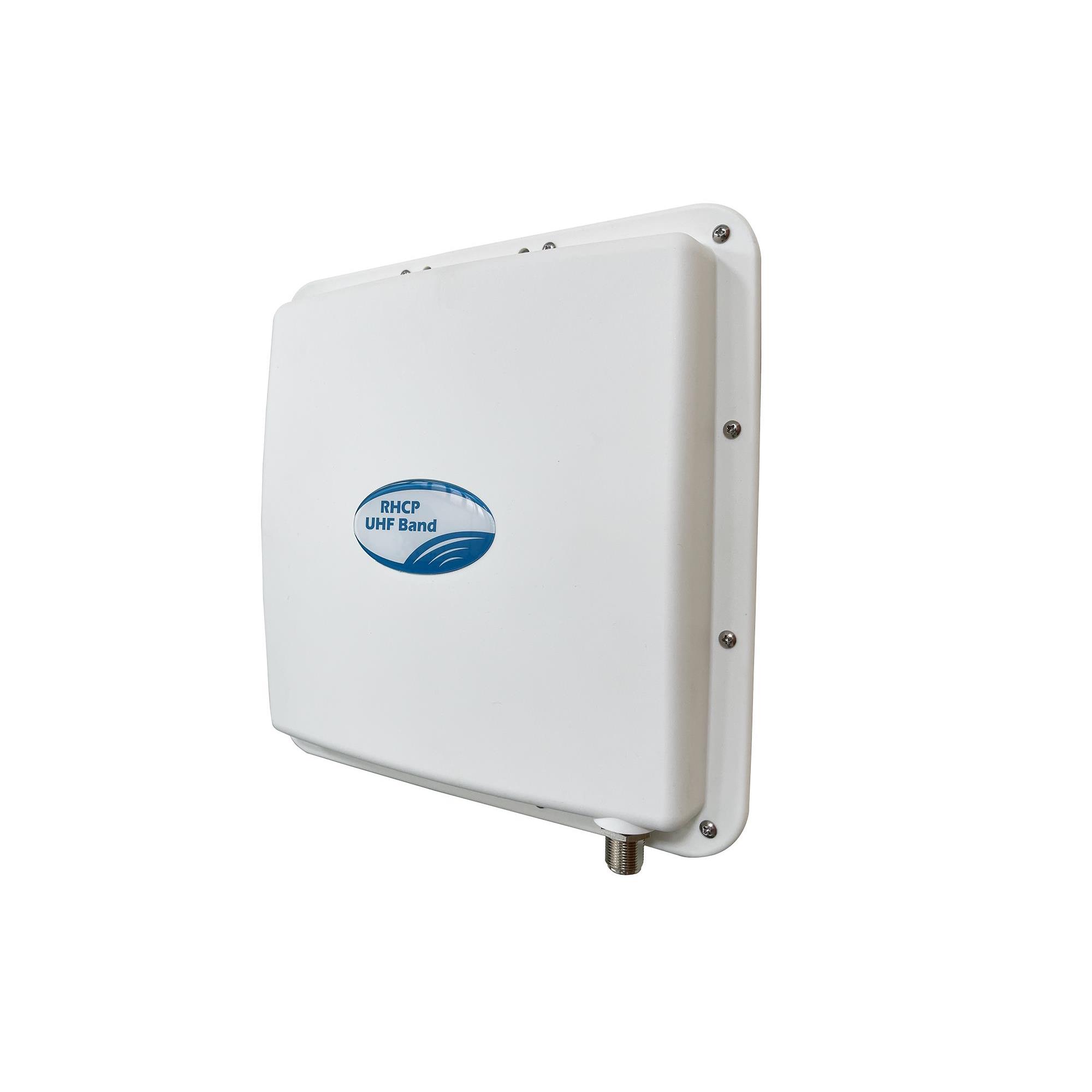

Joymax Electronics GPX-026XNF2W
Image shown is a representation only
Manufacturer
Manufacturer No
GPX-026XNF2W
Packaging
Box
Description
ANT 868 & 915 PANEL N JACK 8 DBI
Detailed Description
RF ANTENNA ISM, RFID Flat Panel N Type Female Bracket Mount
DataSheet
Gain
7dBi, 8dBi
VSWR
1.8, 1.5
Series
026
Packaging
Box
Part Status
Active
Power - Max
10 W
Return Loss
-10dB, -15dB
Termination
N Type Female
Antenna Type
Flat Panel
Applications
ISM, RFID
Height (Max)
10.250" (260.35mm)
Manufacturer
Joymax Electronics
Mounting Type
Bracket Mount
Frequency Group
UHF (300MHz ~ 1GHz)
Frequency Range
862MHz ~ 876MHz, 902MHz ~ 930MHz
Number of Bands
1
Ingress Protection
IP65
RF Family/Standard
General ISM
Frequency (Center/Band)
868MHz, 915MHz
| Attribute | Value |
|---|---|
| Gain | 7dBi, 8dBi |
| VSWR | 1.8, 1.5 |
| Series | 026 |
| Packaging | Box |
| Part Status | Active |
| Power - Max | 10 W |
| Return Loss | -10dB, -15dB |
| Termination | N Type Female |
| Antenna Type | Flat Panel |
| Applications | ISM, RFID |
| Height (Max) | 10.250" (260.35mm) |
| Manufacturer | Joymax Electronics |
| Mounting Type | Bracket Mount |
| Frequency Group | UHF (300MHz ~ 1GHz) |
| Frequency Range | 862MHz ~ 876MHz, 902MHz ~ 930MHz |
| Number of Bands | 1 |
| Ingress Protection | IP65 |
| RF Family/Standard | General ISM |
| Frequency (Center/Band) | 868MHz, 915MHz |
