Step1: Product

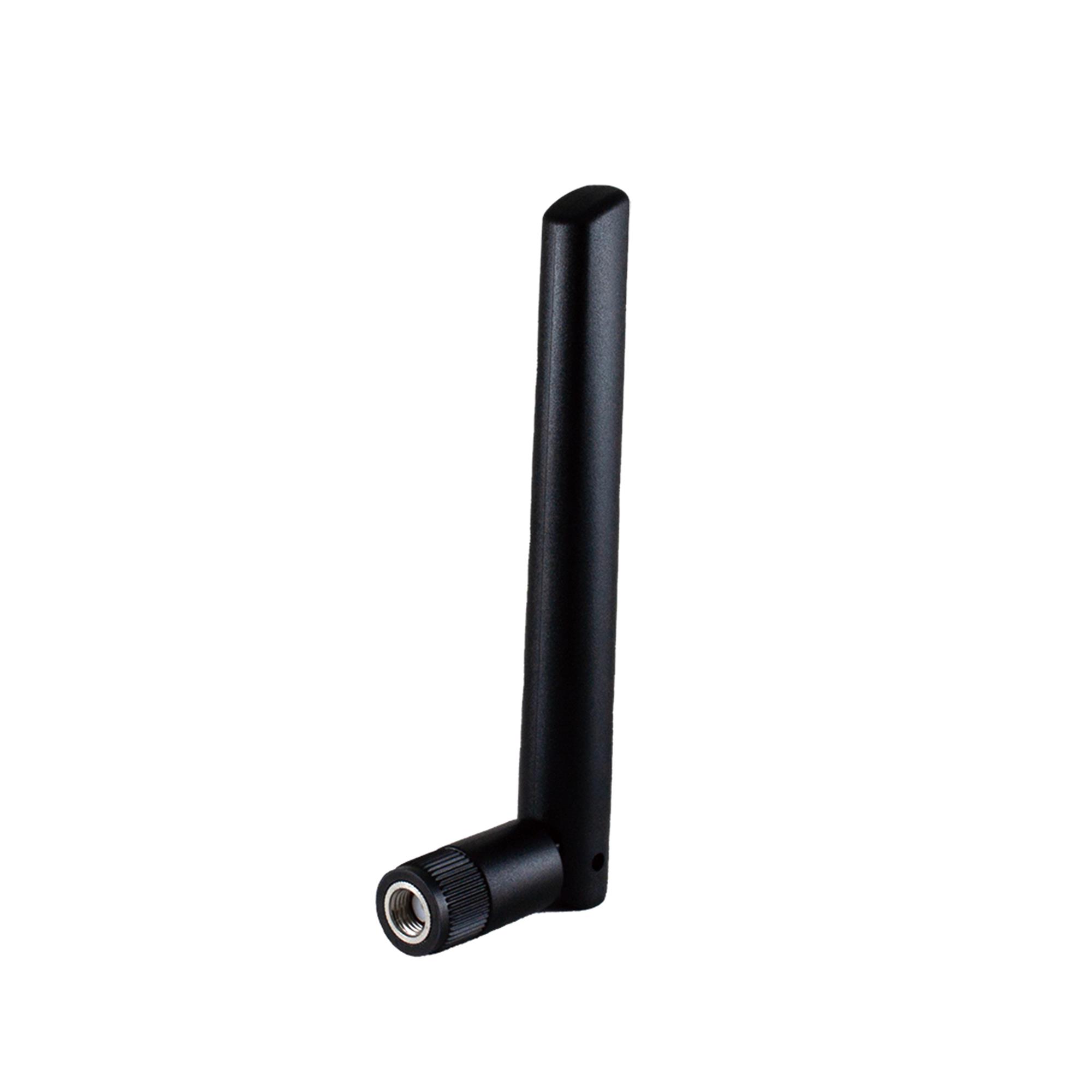

Joymax Electronics TWX-100BRS3B
Image shown is a representation only
Manufacturer
Manufacturer No
TWX-100BRS3B
Packaging
Bag
Description
ANT WIFI 6E WHIP RP-SMA FEMALE
Detailed Description
RF ANTENNA 802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E Whip, Tilt RP-SMA Female Connector Mount
Datasheet
Gain
2.6dBi, 4.3dBi, 4.4dBi
VSWR
1.5, 1.6, 3
Series
100
Packaging
Bag
Power - Max
1 W
Return Loss
-14dB, -12.7dB, -6dB
Termination
RP-SMA Female
Antenna Type
Whip, Tilt
Applications
802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E
Height (Max)
4.870" (123.70mm)
Manufacturer
Joymax Electronics
Mounting Type
Connector Mount
Frequency Group
Wide Band
Frequency Range
2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
Number of Bands
3
RF Family/Standard
WiFi
Frequency (Center/Band)
2.45GHz, 5.5GHz, 6.525GHz
| Attribute | Value |
|---|---|
| Gain | 2.6dBi, 4.3dBi, 4.4dBi |
| VSWR | 1.5, 1.6, 3 |
| Series | 100 |
| Packaging | Bag |
| Power - Max | 1 W |
| Return Loss | -14dB, -12.7dB, -6dB |
| Termination | RP-SMA Female |
| Antenna Type | Whip, Tilt |
| Applications | 802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E |
| Height (Max) | 4.870" (123.70mm) |
| Manufacturer | Joymax Electronics |
| Mounting Type | Connector Mount |
| Frequency Group | Wide Band |
| Frequency Range | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz |
| Number of Bands | 3 |
| RF Family/Standard | WiFi |
| Frequency (Center/Band) | 2.45GHz, 5.5GHz, 6.525GHz |
