Step1: Product

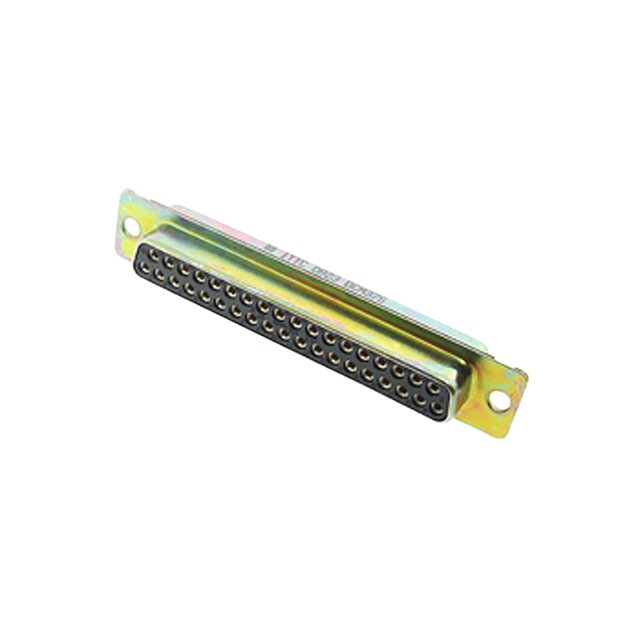

ITT Cannon, LLC DCM37SN
Image shown is a representation only
Manufacturer
Manufacturer No
DCM37SN
Packaging
Bag
Description
CONN D-SUB RCPT 37P PNL MNT SLDR
Detailed Description
37 Position D-Sub Receptacle, Female Sockets Connector
DataSheet
Mfr
ITT Cannon, LLC
Color
Black
Series
D*M
Packaging
Bag
Part Status
Active
Termination
Solder
Contact Form
Machined
Contact Type
Signal
Mounting Type
Panel Mount, Through Hole
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Housing/Shell (Unthreaded)
Number of Rows
2
Connector Style
D-Sub
Contact Material
Copper Alloy
Base Product Number
DCM3
Dielectric Material
Polycyclohexylenedimethylene Terephthalate (PCT)
Number of Positions
37
Current Rating (Amps)
7.5A
Operating Temperature
-55°C ~ 125°C
Shell Material, Finish
Steel, Yellow Chromate Plated Zinc
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
4 (DC, C)
| Attribute | Value |
|---|---|
| Mfr | ITT Cannon, LLC |
| Color | Black |
| Series | D*M |
| Packaging | Bag |
| Part Status | Active |
| Termination | Solder |
| Contact Form | Machined |
| Contact Type | Signal |
| Mounting Type | Panel Mount, Through Hole |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 2 |
| Connector Style | D-Sub |
| Contact Material | Copper Alloy |
| Base Product Number | DCM3 |
| Dielectric Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Number of Positions | 37 |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -55°C ~ 125°C |
| Shell Material, Finish | Steel, Yellow Chromate Plated Zinc |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 4 (DC, C) |
