Step1: Product

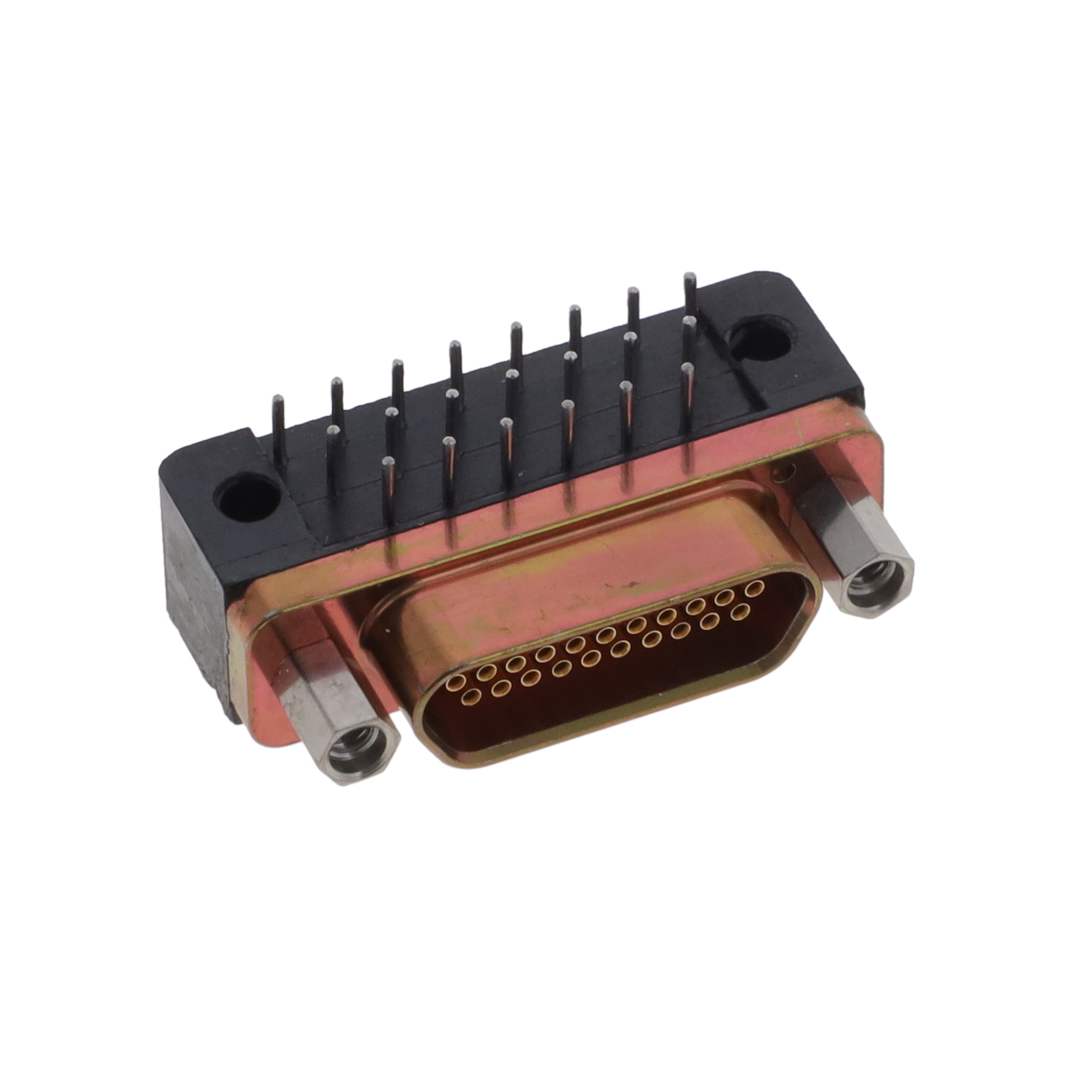

ITT Cannon, LLC MDM-21SCBRM7
Image shown is a representation only
Manufacturer
Manufacturer No
MDM-21SCBRM7
Packaging
Bulk
Description
CONN MICRO-D RCPT 21POS R/A SLDR
Detailed Description
21 Position D-Type, Micro-D Receptacle, Female Sockets Connector
DataSheet
Mfr
ITT Cannon, LLC
Series
83513-Style Micro D Metal Shell (MDM)
Features
Shielded
Packaging
Bulk
Part Status
Active
Termination
Solder
Contact Type
Signal
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Mating Side, Female Screwlock (2-56)
Number of Rows
3
Connector Style
D-Type, Micro-D
Contact Material
Copper Alloy
Base Product Number
MDM-2
Dielectric Material
Liquid Crystal Polymer (LCP)
Number of Positions
21
Current Rating (Amps)
3A
Operating Temperature
-55°C ~ 125°C
Shell Material, Finish
Aluminum, Yellow Chromate Plated Cadmium
Shell Size, Connector Layout
0.050 Pitch x 0.100 Row to Row
| Attribute | Value |
|---|---|
| Mfr | ITT Cannon, LLC |
| Series | 83513-Style Micro D Metal Shell (MDM) |
| Features | Shielded |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Signal |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Mating Side, Female Screwlock (2-56) |
| Number of Rows | 3 |
| Connector Style | D-Type, Micro-D |
| Contact Material | Copper Alloy |
| Base Product Number | MDM-2 |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 21 |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 125°C |
| Shell Material, Finish | Aluminum, Yellow Chromate Plated Cadmium |
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row |
