Infineon Technologies IGA03N120H2XKSA1

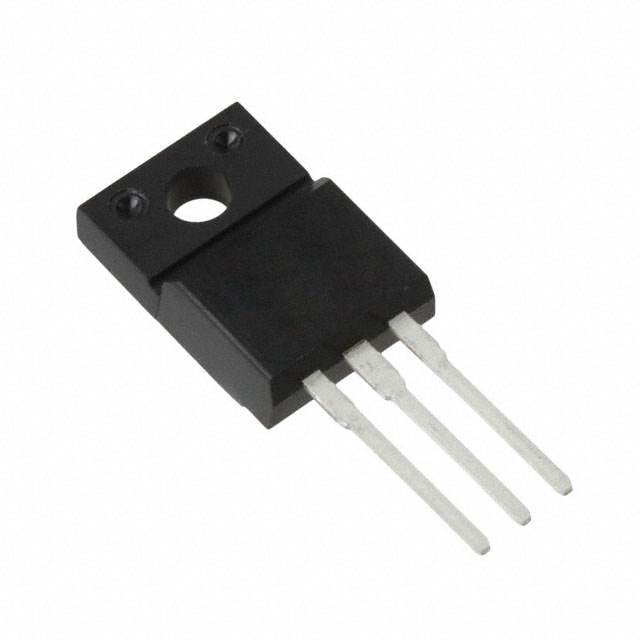

Image shown is a representation only
Manufacturer
Manufacturer No
IGA03N120H2XKSA1
Package
TO-220-3 Full Pack
Packaging
Tube
Description
IGBT 1200V 3A TO220-3-31
Detailed Description
IGBT 1200 V 3 A 29 W Through Hole PG-TO220-3-31
DataSheet
Packaging
Tube
Input Type
Standard
Gate Charge
8.6 nC
Part Status
Obsolete
Power - Max
29 W
Manufacturer
Infineon Technologies
Mounting Type
Through Hole
Package / Case
TO-220-3 Full Pack
Test Condition
800V, 3A, 82Ohm, 15V
Switching Energy
290µJ
Base Product Number
IGA03
Td (on/off) @ 25°C
9.2ns/281ns
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
PG-TO220-3-31
Vce(on) (Max) @ Vge, Ic
2.8V @ 15V, 3A
Current - Collector (Ic) (Max)
3 A
Current - Collector Pulsed (Icm)
9 A
Voltage - Collector Emitter Breakdown (Max)
1200 V
| Attribute | Value |
|---|---|
| Packaging | Tube |
| Input Type | Standard |
| Gate Charge | 8.6 nC |
| Part Status | Obsolete |
| Power - Max | 29 W |
| Manufacturer | Infineon Technologies |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack |
| Test Condition | 800V, 3A, 82Ohm, 15V |
| Switching Energy | 290µJ |
| Base Product Number | IGA03 |
| Td (on/off) @ 25°C | 9.2ns/281ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | PG-TO220-3-31 |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 3A |
| Current - Collector (Ic) (Max) | 3 A |
| Current - Collector Pulsed (Icm) | 9 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
