Step1: Product
Infineon Technologies IKWH40N67PR7XKSA1

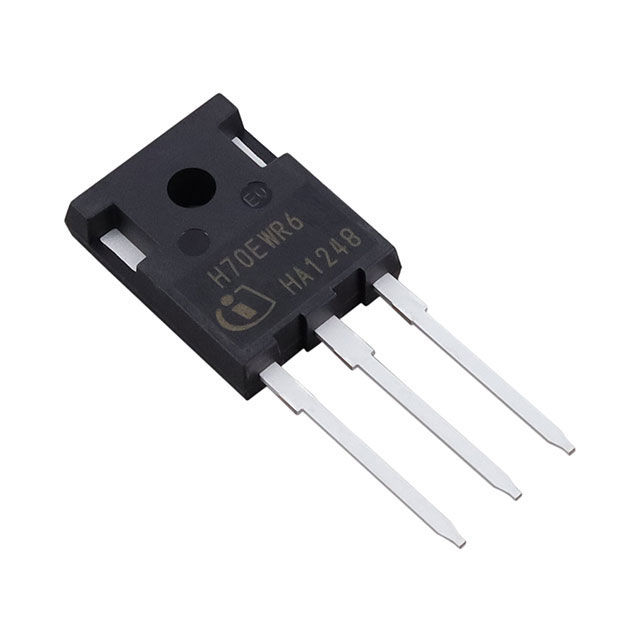

Image shown is a representation only
Manufacturer
Manufacturer No
IKWH40N67PR7XKSA1
Quantity
83
Availability
In Stock
Package
TO-247-3
Packaging
Tube
Description
IGBT TRENCH FS 670V 88A TO247-3
Detailed Description
IGBT Trench Field Stop 670 V 88 A 208 W Through Hole PG-TO247-3-32
Datasheet
Series
TRENCHSTOP™
IGBT Type
Trench Field Stop
Packaging
Tube
Input Type
Standard
Gate Charge
102 nC
Power - Max
208 W
Manufacturer
Infineon Technologies
Mounting Type
Through Hole
Package / Case
TO-247-3
Test Condition
400V, 40A, 9.8Ohm, 15V
Switching Energy
660µJ (on), 400µJ (off)
Td (on/off) @ 25°C
16ns/146ns
Operating Temperature
-40°C ~ 175°C (TJ)
Supplier Device Package
PG-TO247-3-32
Current - Collector (Ic) (Max)
88 A
Current - Collector Pulsed (Icm)
120 A
Voltage - Collector Emitter Breakdown (Max)
670 V
| Attribute | Value |
|---|---|
| Series | TRENCHSTOP™ |
| IGBT Type | Trench Field Stop |
| Packaging | Tube |
| Input Type | Standard |
| Gate Charge | 102 nC |
| Power - Max | 208 W |
| Manufacturer | Infineon Technologies |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Test Condition | 400V, 40A, 9.8Ohm, 15V |
| Switching Energy | 660µJ (on), 400µJ (off) |
| Td (on/off) @ 25°C | 16ns/146ns |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Supplier Device Package | PG-TO247-3-32 |
| Current - Collector (Ic) (Max) | 88 A |
| Current - Collector Pulsed (Icm) | 120 A |
| Voltage - Collector Emitter Breakdown (Max) | 670 V |
