Infineon Technologies IGD03N120S7ATMA1

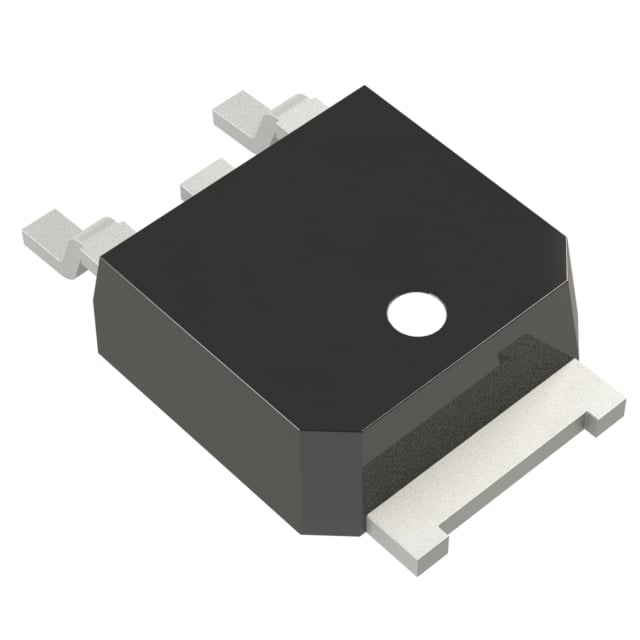

Image shown is a representation only
Manufacturer
Manufacturer No
IGD03N120S7ATMA1
Quantity
122
Availability
In Stock
Package
TO-252-3, DPAK (2 Leads + Tab), SC-63
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IGBT TRENCH FS 1200V 10A TO252-3
Detailed Description
IGBT Trench Field Stop 1200 V 10 A 45 W Surface Mount PG-TO252-3
DataSheet
Series
TRENCHSTOP™
IGBT Type
Trench Field Stop
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Input Type
Standard
Gate Charge
24 nC
Part Status
Active
Power - Max
45 W
Manufacturer
Infineon Technologies
Mounting Type
Surface Mount
Package / Case
TO-252-3, DPAK (2 Leads + Tab), SC-63
Test Condition
600V, 3A, 60Ohm, 15V
Switching Energy
210µJ (on), 160µJ (off)
Td (on/off) @ 25°C
19ns/89ns
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
PG-TO252-3
Vce(on) (Max) @ Vge, Ic
2V @ 15V, 3A
Current - Collector (Ic) (Max)
10 A
Current - Collector Pulsed (Icm)
9 A
Voltage - Collector Emitter Breakdown (Max)
1200 V
| Attribute | Value |
|---|---|
| Series | TRENCHSTOP™ |
| IGBT Type | Trench Field Stop |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Input Type | Standard |
| Gate Charge | 24 nC |
| Part Status | Active |
| Power - Max | 45 W |
| Manufacturer | Infineon Technologies |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Test Condition | 600V, 3A, 60Ohm, 15V |
| Switching Energy | 210µJ (on), 160µJ (off) |
| Td (on/off) @ 25°C | 19ns/89ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | PG-TO252-3 |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 3A |
| Current - Collector (Ic) (Max) | 10 A |
| Current - Collector Pulsed (Icm) | 9 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
