Step1: Product

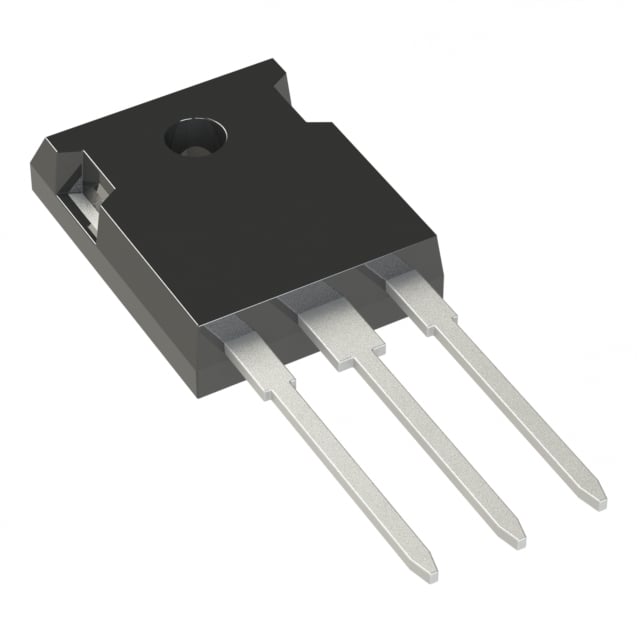

Infineon Technologies IKW30N65ET7XKSA1
Image shown is a representation only
Manufacturer
Manufacturer No
IKW30N65ET7XKSA1
Quantity
800
Availability
In Stock
Package
TO-247-3
Packaging
Tube
Description
IGBT TRENCH FS 650V 30A TO247-3
Detailed Description
IGBT Trench Field Stop 650 V 30 A 188 W Through Hole PG-TO247-3
DataSheet
Grade
Automotive
Series
TRENCHSTOP™
IGBT Type
Trench Field Stop
Packaging
Tube
Input Type
Standard
Gate Charge
180 nC
Part Status
Active
Power - Max
188 W
Manufacturer
Infineon Technologies
Mounting Type
Through Hole
Qualification
AEC-Q101
Package / Case
TO-247-3
Test Condition
400V, 30A, 10Ohm, 15V
Switching Energy
590µJ (on), 500µJ (off)
Base Product Number
IKW30N65
Td (on/off) @ 25°C
20ns/245ns
Operating Temperature
-40°C ~ 175°C (TJ)
Supplier Device Package
PG-TO247-3
Vce(on) (Max) @ Vge, Ic
1.65V @ 15V, 30A
Reverse Recovery Time (trr)
80 ns
Current - Collector (Ic) (Max)
30 A
Current - Collector Pulsed (Icm)
90 A
Voltage - Collector Emitter Breakdown (Max)
650 V
| Attribute | Value |
|---|---|
| Grade | Automotive |
| Series | TRENCHSTOP™ |
| IGBT Type | Trench Field Stop |
| Packaging | Tube |
| Input Type | Standard |
| Gate Charge | 180 nC |
| Part Status | Active |
| Power - Max | 188 W |
| Manufacturer | Infineon Technologies |
| Mounting Type | Through Hole |
| Qualification | AEC-Q101 |
| Package / Case | TO-247-3 |
| Test Condition | 400V, 30A, 10Ohm, 15V |
| Switching Energy | 590µJ (on), 500µJ (off) |
| Base Product Number | IKW30N65 |
| Td (on/off) @ 25°C | 20ns/245ns |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Supplier Device Package | PG-TO247-3 |
| Vce(on) (Max) @ Vge, Ic | 1.65V @ 15V, 30A |
| Reverse Recovery Time (trr) | 80 ns |
| Current - Collector (Ic) (Max) | 30 A |
| Current - Collector Pulsed (Icm) | 90 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
