Step1: Product
Harwin Inc. M50-3600542R
Image shown is a representation only
Manufacturer
Manufacturer No
M50-3600542R
Quantity
774
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description

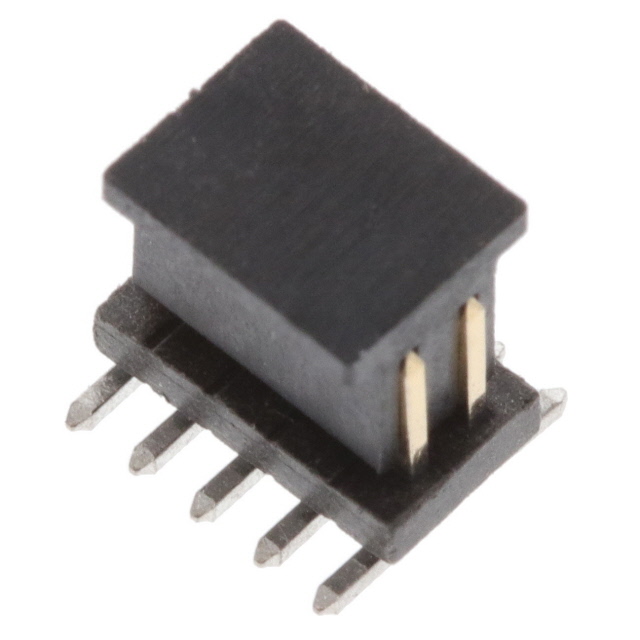

CONN HEADER SMD 10POS 1.27MM
Detailed Description
Connector Header Surface Mount 10 position 0.050" (1.27mm)
Datasheet
Mfr
Harwin Inc.
Style
Board to Board or Cable
Series
Archer M50
Features
Pick and Place
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shrouding
Unshrouded
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.050" (1.27mm)
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.039" (1.00mm)
Base Product Number
M50-360
Insulation Material
Thermoplastic
Number of Positions
10
Row Spacing - Mating
0.050" (1.27mm)
Contact Finish - Post
Tin
Current Rating (Amps)
1A
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
3.9mm, 5.3mm, 6.08mm, 6.18mm, 7mm
Contact Finish - Mating
Gold
Contact Length - Mating
0.118" (3.00mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
98.4µin (2.50µm)
Contact Finish Thickness - Mating
3.00µin (0.076µm)
| Attribute | Value |
|---|---|
| Mfr | Harwin Inc. |
| Style | Board to Board or Cable |
| Series | Archer M50 |
| Features | Pick and Place |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.039" (1.00mm) |
| Base Product Number | M50-360 |
| Insulation Material | Thermoplastic |
| Number of Positions | 10 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 1A |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | 3.9mm, 5.3mm, 6.08mm, 6.18mm, 7mm |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.118" (3.00mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 98.4µin (2.50µm) |
| Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
