Step1: Product

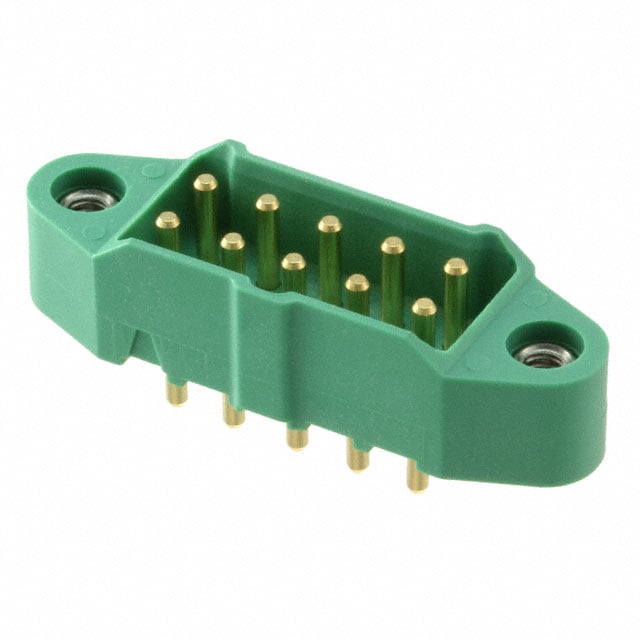

Harwin Inc. M300-MV31045M1
Image shown is a representation only
Manufacturer
Manufacturer No
M300-MV31045M1
Quantity
2
Availability
In Stock
Packaging
Tube
Description
CONN HEADER VERT 10POS 3MM
Detailed Description
Connector Header Through Hole 10 position 0.118" (3.00mm)
DataSheet
Mfr
Harwin Inc.
Style
Board to Board or Cable
Series
M300
Features
Mating Flange
Packaging
Tube
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin, Power
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Threaded
Number of Rows
2
Pitch - Mating
0.118" (3.00mm)
Voltage Rating
600VAC/DC
Contact Material
Brass
Insulation Color
Green
Insulation Height
0.276" (7.00mm)
Base Product Number
M300-MV3
Insulation Material
Polyamide (PA46), Nylon 4/6, Glass Filled
Number of Positions
10
Row Spacing - Mating
0.118" (3.00mm)
Contact Length - Post
0.126" (3.20mm)
Current Rating (Amps)
10A
Operating Temperature
-65°C ~ 175°C
Mated Stacking Heights
8.9mm
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
29.5µin (0.75µm)
| Attribute | Value |
|---|---|
| Mfr | Harwin Inc. |
| Style | Board to Board or Cable |
| Series | M300 |
| Features | Mating Flange |
| Packaging | Tube |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin, Power |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Threaded |
| Number of Rows | 2 |
| Pitch - Mating | 0.118" (3.00mm) |
| Voltage Rating | 600VAC/DC |
| Contact Material | Brass |
| Insulation Color | Green |
| Insulation Height | 0.276" (7.00mm) |
| Base Product Number | M300-MV3 |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Number of Positions | 10 |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Contact Length - Post | 0.126" (3.20mm) |
| Current Rating (Amps) | 10A |
| Operating Temperature | -65°C ~ 175°C |
| Mated Stacking Heights | 8.9mm |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
