Step1: Product
Harwin Inc. M300-FV31045F2

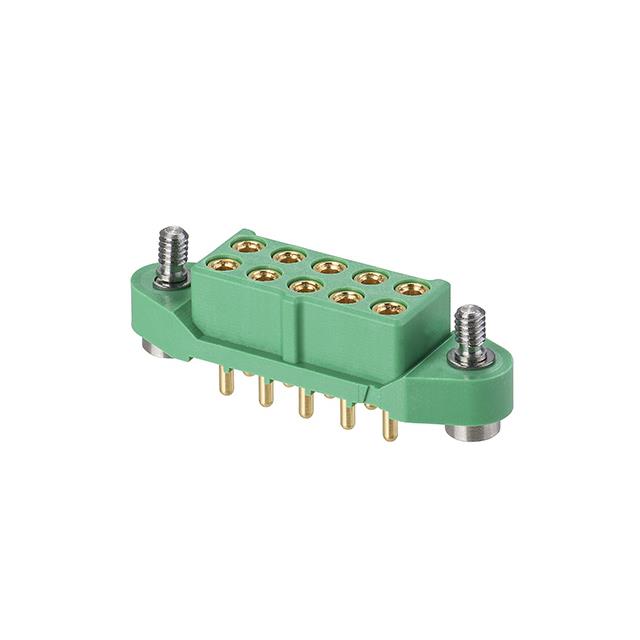

Image shown is a representation only
Manufacturer
Manufacturer No
M300-FV31045F2
Packaging
Tube
Description
CONN RCPT 3MM PCB GOLD 10POS
Detailed Description
10 Position Receptacle Connector 0.118" (3.00mm) Through Hole Gold
Datasheet
Mfr
Harwin Inc.
Style
Board to Board or Cable
Series
M300
Features
Jackscrews, Polarizing Key
Packaging
Tube
Termination
Solder
Applications
Automotive, General Purpose, Telecommunications
Contact Type
Female Socket, Power
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Receptacle
Fastening Type
Screw Lock
Number of Rows
2
Pitch - Mating
0.118" (3.00mm)
Voltage Rating
600V
Contact Material
Beryllium Copper
Insulation Color
Green
Insulation Height
0.256" (6.50mm)
Insulation Material
Polyamide (PA46), Nylon 4/6, Glass Filled
Number of Positions
10
Row Spacing - Mating
0.118" (3.00mm)
Contact Length - Post
0.126" (3.20mm)
Current Rating (Amps)
10A
Operating Temperature
-65°C ~ 175°C
Mated Stacking Heights
8.9mm
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
3.94µin (0.100µm)
| Attribute | Value |
|---|---|
| Mfr | Harwin Inc. |
| Style | Board to Board or Cable |
| Series | M300 |
| Features | Jackscrews, Polarizing Key |
| Packaging | Tube |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact Type | Female Socket, Power |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Receptacle |
| Fastening Type | Screw Lock |
| Number of Rows | 2 |
| Pitch - Mating | 0.118" (3.00mm) |
| Voltage Rating | 600V |
| Contact Material | Beryllium Copper |
| Insulation Color | Green |
| Insulation Height | 0.256" (6.50mm) |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Number of Positions | 10 |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Contact Length - Post | 0.126" (3.20mm) |
| Current Rating (Amps) | 10A |
| Operating Temperature | -65°C ~ 175°C |
| Mated Stacking Heights | 8.9mm |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 3.94µin (0.100µm) |
