Step1: Product
EPC EPC2111

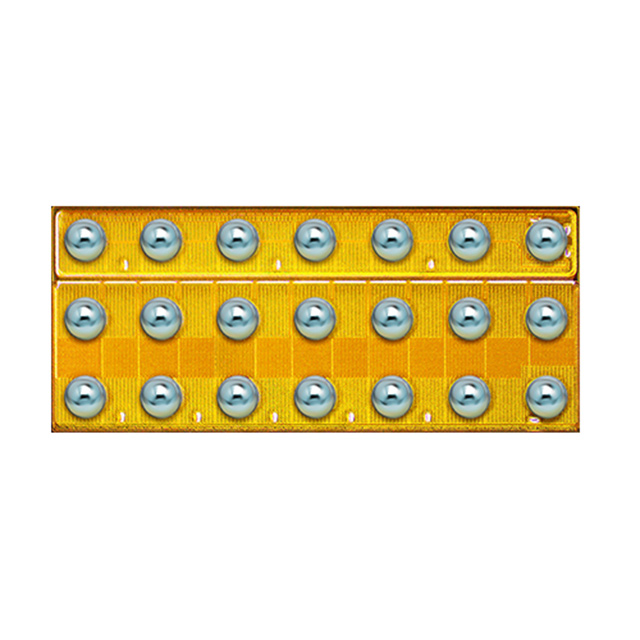

Image shown is a representation only
Manufacturer
Manufacturer No
EPC2111
Package
Die
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOSFET 2N-CH 30V 16A DIE
Detailed Description
Mosfet Array 30V 16A (Ta) Surface Mount Die
DataSheet
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
GaNFET (Gallium Nitride)
Part Status
Obsolete
Manufacturer
EPC
Configuration
2 N-Channel (Half Bridge)
Mounting Type
Surface Mount
Package / Case
Die
Vgs(th) (Max) @ Id
2.5V @ 2mA, 2.5V @ 5mA
Base Product Number
EPC211
Operating Temperature
-40°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
19mOhm @ 15A, 5V, 8mOhm @ 15A, 5V
Supplier Device Package
Die
Gate Charge (Qg) (Max) @ Vgs
2.2nC @ 5V, 5.8nC @ 5V
Drain to Source Voltage (Vdss)
30V
Input Capacitance (Ciss) (Max) @ Vds
230pF @ 15V, 595pF @ 15V
Current - Continuous Drain (Id) @ 25°C
16A (Ta)
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | GaNFET (Gallium Nitride) |
| Part Status | Obsolete |
| Manufacturer | EPC |
| Configuration | 2 N-Channel (Half Bridge) |
| Mounting Type | Surface Mount |
| Package / Case | Die |
| Vgs(th) (Max) @ Id | 2.5V @ 2mA, 2.5V @ 5mA |
| Base Product Number | EPC211 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 19mOhm @ 15A, 5V, 8mOhm @ 15A, 5V |
| Supplier Device Package | Die |
| Gate Charge (Qg) (Max) @ Vgs | 2.2nC @ 5V, 5.8nC @ 5V |
| Drain to Source Voltage (Vdss) | 30V |
| Input Capacitance (Ciss) (Max) @ Vds | 230pF @ 15V, 595pF @ 15V |
| Current - Continuous Drain (Id) @ 25°C | 16A (Ta) |
