Step1: Product
EPC EPC2106ENGRT

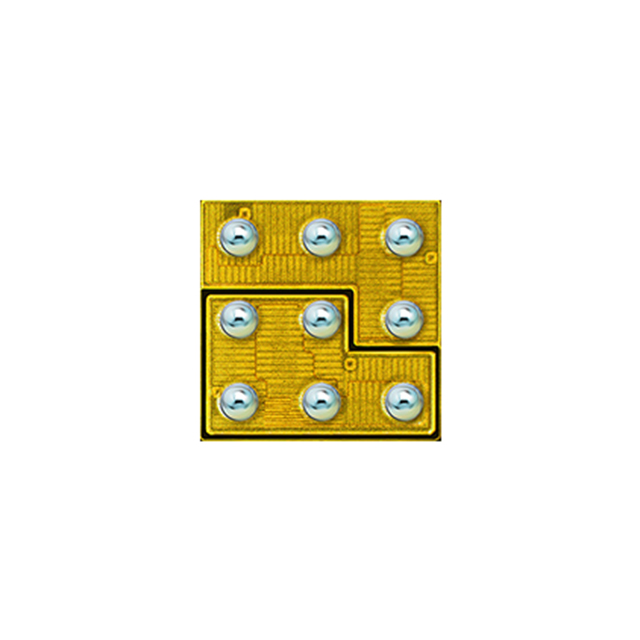

Image shown is a representation only
Manufacturer
Manufacturer No
EPC2106ENGRT
Package
Die
Packaging
Tape & Reel (TR)
Description
MOSFET 2N-CH 100V 1.7A DIE
Detailed Description
Mosfet Array 100V 1.7A Surface Mount Die
DataSheet
Series
eGaN®
Packaging
Tape & Reel (TR)
Technology
GaNFET (Gallium Nitride)
Part Status
Discontinued at DigiKey
Manufacturer
EPC
Configuration
2 N-Channel (Half Bridge)
Mounting Type
Surface Mount
Package / Case
Die
Vgs(th) (Max) @ Id
2.5V @ 600µA
Base Product Number
EPC210
Operating Temperature
-40°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
70mOhm @ 2A, 5V
Supplier Device Package
Die
Gate Charge (Qg) (Max) @ Vgs
0.73nC @ 5V
Drain to Source Voltage (Vdss)
100V
Input Capacitance (Ciss) (Max) @ Vds
75pF @ 50V
Current - Continuous Drain (Id) @ 25°C
1.7A
| Attribute | Value |
|---|---|
| Series | eGaN® |
| Packaging | Tape & Reel (TR) |
| Technology | GaNFET (Gallium Nitride) |
| Part Status | Discontinued at DigiKey |
| Manufacturer | EPC |
| Configuration | 2 N-Channel (Half Bridge) |
| Mounting Type | Surface Mount |
| Package / Case | Die |
| Vgs(th) (Max) @ Id | 2.5V @ 600µA |
| Base Product Number | EPC210 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 70mOhm @ 2A, 5V |
| Supplier Device Package | Die |
| Gate Charge (Qg) (Max) @ Vgs | 0.73nC @ 5V |
| Drain to Source Voltage (Vdss) | 100V |
| Input Capacitance (Ciss) (Max) @ Vds | 75pF @ 50V |
| Current - Continuous Drain (Id) @ 25°C | 1.7A |
