EPC EPC2105

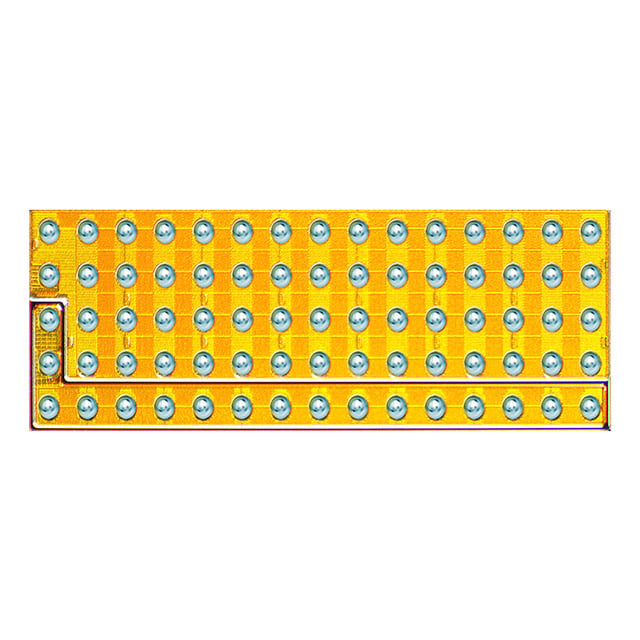

Image shown is a representation only
Manufacturer
Manufacturer No
EPC2105
Package
Die
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOSFET 2N-CH 80V 9.5A/38A DIE
Detailed Description
Mosfet Array 80V 9.5A, 38A Surface Mount Die
DataSheet
Series
eGaN®
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
GaNFET (Gallium Nitride)
Part Status
Obsolete
Manufacturer
EPC
Configuration
2 N-Channel (Half Bridge)
Mounting Type
Surface Mount
Package / Case
Die
Vgs(th) (Max) @ Id
2.5V @ 2.5mA, 2.5V @ 10mA
Base Product Number
EPC210
Operating Temperature
-40°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
14.5mOhm @ 20A, 5V, 3.4mOhm @ 20A, 5V
Supplier Device Package
Die
Gate Charge (Qg) (Max) @ Vgs
2.5nC @ 5V, 10nC @ 5V
Drain to Source Voltage (Vdss)
80V
Input Capacitance (Ciss) (Max) @ Vds
300pF @ 40V, 1100pF @ 40V
Current - Continuous Drain (Id) @ 25°C
9.5A, 38A
| Attribute | Value |
|---|---|
| Series | eGaN® |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | GaNFET (Gallium Nitride) |
| Part Status | Obsolete |
| Manufacturer | EPC |
| Configuration | 2 N-Channel (Half Bridge) |
| Mounting Type | Surface Mount |
| Package / Case | Die |
| Vgs(th) (Max) @ Id | 2.5V @ 2.5mA, 2.5V @ 10mA |
| Base Product Number | EPC210 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 14.5mOhm @ 20A, 5V, 3.4mOhm @ 20A, 5V |
| Supplier Device Package | Die |
| Gate Charge (Qg) (Max) @ Vgs | 2.5nC @ 5V, 10nC @ 5V |
| Drain to Source Voltage (Vdss) | 80V |
| Input Capacitance (Ciss) (Max) @ Vds | 300pF @ 40V, 1100pF @ 40V |
| Current - Continuous Drain (Id) @ 25°C | 9.5A, 38A |
