Step1: Product
E-Switch TL1016BBF160QG

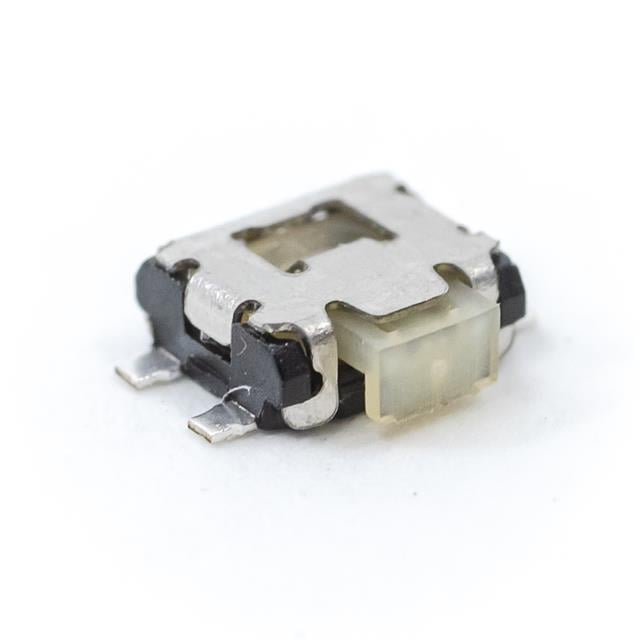

Image shown is a representation only
Manufacturer
Manufacturer No
TL1016BBF160QG
Quantity
90
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
SWITCH TACTILE SPST-NO 0.05A 12V
Detailed Description
Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
Datasheet
Mfr
E-Switch
Series
TL1016
Circuit
SPST-NO
Outline
4.70mm x 2.90mm
Features
Board Guide, Grounding Pin
Packaging
Tape & Reel (TR); Cut Tape (CT)
Illumination
Non-Illuminated
Actuator Type
Rectangular Button
Mounting Type
Surface Mount, Right Angle
Switch Travel
0.20mm
Mechanical Life
100,000 Cycles
Operating Force
160gf
Switch Function
Off-Mom
Termination Style
Gull Wing
Base Product Number
TL1016
Actuator Orientation
Side Actuated
Operating Temperature
-40°C ~ 85°C
Contact Rating @ Voltage
0.05A @ 12VDC
Actuator Length, Right Angle
3.55mm
| Attribute | Value |
|---|---|
| Mfr | E-Switch |
| Series | TL1016 |
| Circuit | SPST-NO |
| Outline | 4.70mm x 2.90mm |
| Features | Board Guide, Grounding Pin |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Illumination | Non-Illuminated |
| Actuator Type | Rectangular Button |
| Mounting Type | Surface Mount, Right Angle |
| Switch Travel | 0.20mm |
| Mechanical Life | 100,000 Cycles |
| Operating Force | 160gf |
| Switch Function | Off-Mom |
| Termination Style | Gull Wing |
| Base Product Number | TL1016 |
| Actuator Orientation | Side Actuated |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Length, Right Angle | 3.55mm |
