Step1: Product

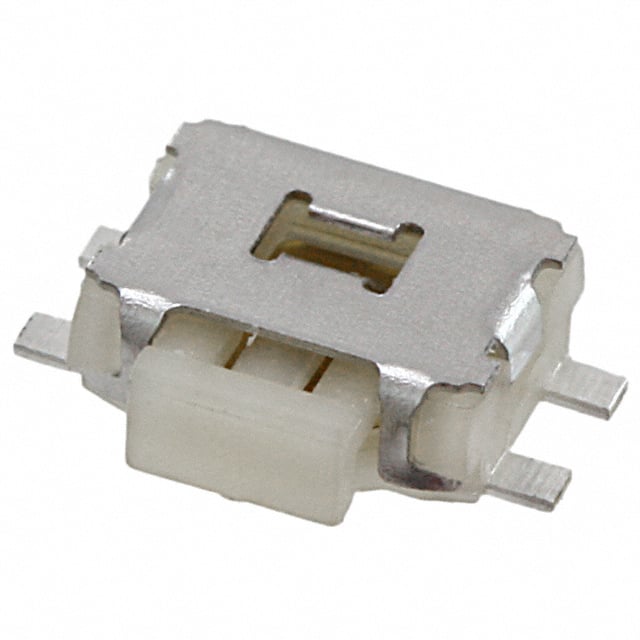

E-Switch TL1014AF160QG
Image shown is a representation only
Manufacturer
Manufacturer No
TL1014AF160QG
Quantity
7
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
SWITCH TACTILE SPST-NO 0.05A 12V
Detailed Description
Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
Datasheet
Mfr
E-Switch
Series
TL1014
Circuit
SPST-NO
Outline
6.40mm x 3.50mm
Packaging
Tape & Reel (TR); Cut Tape (CT)
Illumination
Non-Illuminated
Actuator Type
Rectangular Button
Mounting Type
Surface Mount, Right Angle
Switch Travel
0.25mm
Mechanical Life
200,000 Cycles
Operating Force
160gf
Switch Function
Off-Mom
Actuator Material
Polyamide (PA46), Nylon 4/6
Termination Style
Gull Wing
Base Product Number
TL1014
Actuator Orientation
Side Actuated
Operating Temperature
-40°C ~ 85°C
Contact Rating @ Voltage
0.05A @ 12VDC
Actuator Length, Right Angle
4.50mm
| Attribute | Value |
|---|---|
| Mfr | E-Switch |
| Series | TL1014 |
| Circuit | SPST-NO |
| Outline | 6.40mm x 3.50mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Illumination | Non-Illuminated |
| Actuator Type | Rectangular Button |
| Mounting Type | Surface Mount, Right Angle |
| Switch Travel | 0.25mm |
| Mechanical Life | 200,000 Cycles |
| Operating Force | 160gf |
| Switch Function | Off-Mom |
| Actuator Material | Polyamide (PA46), Nylon 4/6 |
| Termination Style | Gull Wing |
| Base Product Number | TL1014 |
| Actuator Orientation | Side Actuated |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Length, Right Angle | 4.50mm |
