Step1: Product

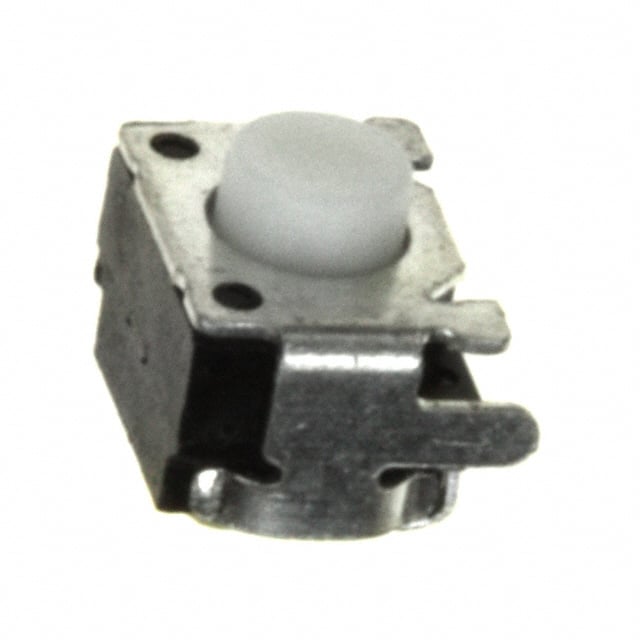

E-Switch TL3340AF160QG
Image shown is a representation only
Manufacturer
Manufacturer No
TL3340AF160QG
Quantity
1599
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
SWITCH TACTILE SPST-NO 0.05A 12V
Detailed Description
Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
DataSheet
Mfr
E-Switch
Series
TL3340
Circuit
SPST-NO
Outline
4.00mm x 3.30mm
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Illumination
Non-Illuminated
Actuator Type
Standard
Mounting Type
Surface Mount, Right Angle
Switch Travel
0.20mm
Mechanical Life
100,000 Cycles
Operating Force
160gf
Switch Function
Off-Mom
Actuator Material
Polyphthalamide (PPA)
Termination Style
Gull Wing
Base Product Number
TL3340
Actuator Orientation
Side Actuated
Operating Temperature
-35°C ~ 85°C
Contact Rating @ Voltage
0.05A @ 12VDC
Actuator Length, Right Angle
3.40mm
| Attribute | Value |
|---|---|
| Mfr | E-Switch |
| Series | TL3340 |
| Circuit | SPST-NO |
| Outline | 4.00mm x 3.30mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Actuator Type | Standard |
| Mounting Type | Surface Mount, Right Angle |
| Switch Travel | 0.20mm |
| Mechanical Life | 100,000 Cycles |
| Operating Force | 160gf |
| Switch Function | Off-Mom |
| Actuator Material | Polyphthalamide (PPA) |
| Termination Style | Gull Wing |
| Base Product Number | TL3340 |
| Actuator Orientation | Side Actuated |
| Operating Temperature | -35°C ~ 85°C |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Length, Right Angle | 3.40mm |
