Step1: Product

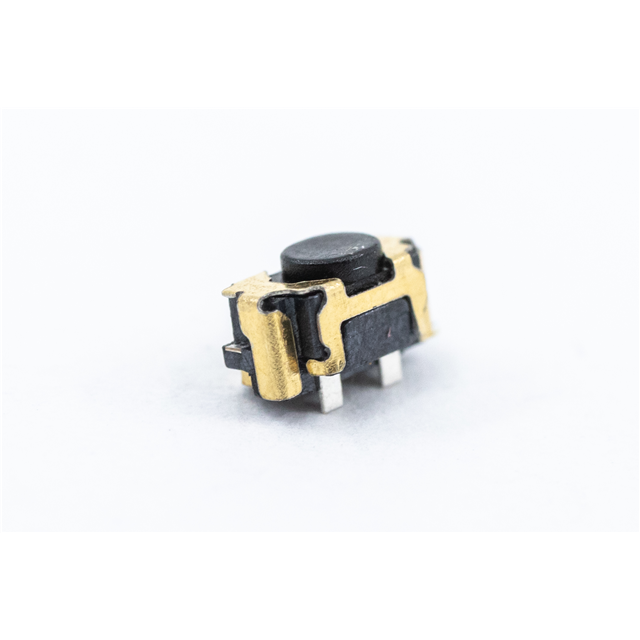

E-Switch TL4115AF220Q
Image shown is a representation only
Manufacturer
Manufacturer No
TL4115AF220Q
Quantity
3,088
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
SWITCH TACTILE SPST-NO 0.05A 12V
Detailed Description
Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
Mfr
E-Switch
Series
TL4115
Circuit
SPST-NO
Outline
4.50mm x 2.20mm
Packaging
Tape & Reel (TR); Cut Tape (CT)
Illumination
Non-Illuminated
Actuator Type
Standard
Mounting Type
Surface Mount
Switch Travel
0.15mm
Mechanical Life
600,000 Cycles
Operating Force
220gf
Switch Function
On-Mom
Termination Style
SMD (SMT) Tab
Base Product Number
TL4115
Actuator Orientation
Top Actuated
Operating Temperature
-30°C ~ 85°C
Contact Rating @ Voltage
0.05A @ 12VDC
Actuator Height off PCB, Vertical
2.60mm
| Attribute | Value |
|---|---|
| Mfr | E-Switch |
| Series | TL4115 |
| Circuit | SPST-NO |
| Outline | 4.50mm x 2.20mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Illumination | Non-Illuminated |
| Actuator Type | Standard |
| Mounting Type | Surface Mount |
| Switch Travel | 0.15mm |
| Mechanical Life | 600,000 Cycles |
| Operating Force | 220gf |
| Switch Function | On-Mom |
| Termination Style | SMD (SMT) Tab |
| Base Product Number | TL4115 |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -30°C ~ 85°C |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Height off PCB, Vertical | 2.60mm |
