Step1: Product
Cvilux USA CI0104P1VK0-NH

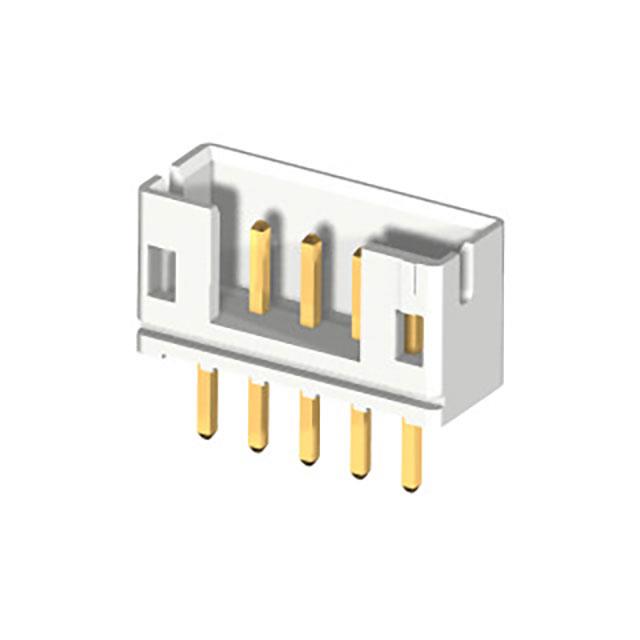

Image shown is a representation only
Manufacturer
Manufacturer No
CI0104P1VK0-NH
Packaging
Bulk
Description
4 POS 2.00MM(.079) SINGLE ROW ST
Detailed Description
Connector Header Through Hole 4 position 0.079" (2.00mm)
Datasheet
Mfr
Cvilux USA
Style
Board to Cable/Wire
Series
CI01
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Termination
Kinked Pin, Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Detent Lock
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
250VAC/DC
Contact Material
Brass
Insulation Color
Natural
Insulation Height
0.240" (6.10mm)
Base Product Number
CI0104P1
Insulation Material
Polyamide (PA66), Nylon 6/6
Number of Positions
4
Contact Finish - Post
Tin
Contact Length - Post
0.134" (3.40mm)
Current Rating (Amps)
2A
Operating Temperature
-25°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
120.0µin (3.05µm)
| Attribute | Value |
|---|---|
| Mfr | Cvilux USA |
| Style | Board to Cable/Wire |
| Series | CI01 |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Detent Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 250VAC/DC |
| Contact Material | Brass |
| Insulation Color | Natural |
| Insulation Height | 0.240" (6.10mm) |
| Base Product Number | CI0104P1 |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Number of Positions | 4 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.134" (3.40mm) |
| Current Rating (Amps) | 2A |
| Operating Temperature | -25°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 120.0µin (3.05µm) |
