Step1: Product

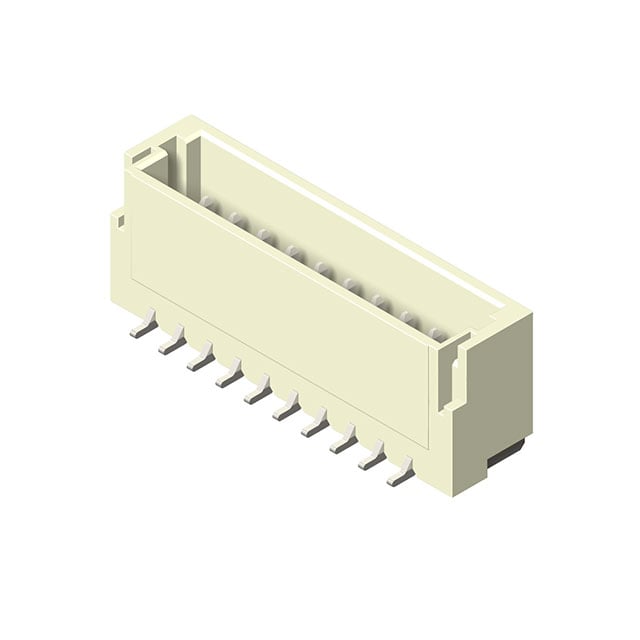

Cvilux USA CI1110M1VR0-NH
Image shown is a representation only
Manufacturer
Manufacturer No
CI1110M1VR0-NH
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
10 POS 1.00MM(.039) SINGLE ROW S
Detailed Description
Connector Header Surface Mount 10 position 0.039" (1.00mm)
DataSheet
Mfr
Cvilux USA
Style
Board to Cable/Wire
Series
CI11
Features
Pick and Place, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Rectangular
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Detent Lock
Number of Rows
1
Pitch - Mating
0.039" (1.00mm)
Voltage Rating
50VAC
Contact Material
Phosphor Bronze
Insulation Color
Natural
Insulation Height
0.169" (4.30mm)
Base Product Number
CI1110M1
Insulation Material
Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free
Number of Positions
10
Contact Finish - Post
Tin
Current Rating (Amps)
1A (AC/DC)
Operating Temperature
-25°C ~ 85°C
Contact Finish - Mating
Tin
Contact Length - Mating
0.069" (1.75mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
100.0µin (2.54µm)
Contact Finish Thickness - Mating
100.0µin (2.54µm)
| Attribute | Value |
|---|---|
| Mfr | Cvilux USA |
| Style | Board to Cable/Wire |
| Series | CI11 |
| Features | Pick and Place, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Detent Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.039" (1.00mm) |
| Voltage Rating | 50VAC |
| Contact Material | Phosphor Bronze |
| Insulation Color | Natural |
| Insulation Height | 0.169" (4.30mm) |
| Base Product Number | CI1110M1 |
| Insulation Material | Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free |
| Number of Positions | 10 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 1A (AC/DC) |
| Operating Temperature | -25°C ~ 85°C |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.069" (1.75mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
