Cvilux USA CP-01406150

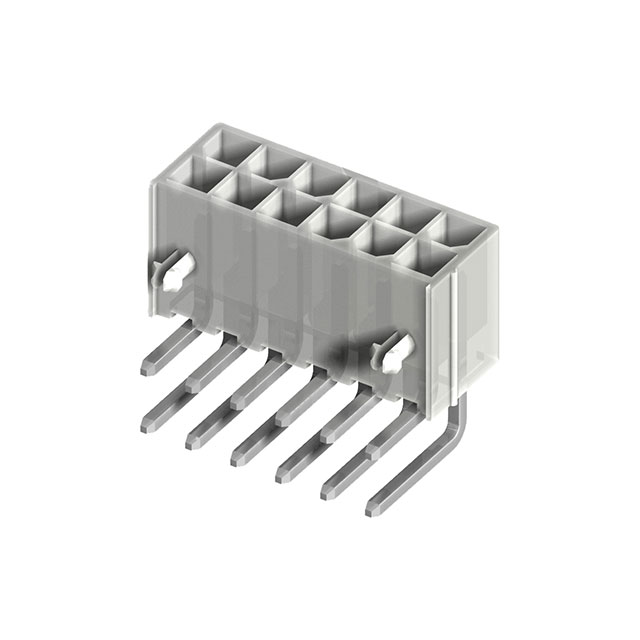

Image shown is a representation only
Manufacturer
Manufacturer No
CP-01406150
Packaging
Bag
Description
4.20MM 6 POS DUAL ROWS RIGHT ANG
Detailed Description
Connector Header Through Hole, Right Angle 6 position 0.165" (4.20mm)
DataSheet
Mfr
Cvilux USA
Style
Board to Cable/Wire
Series
CP-01
Features
Board Lock
Packaging
Bag
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
2
Pitch - Mating
0.165" (4.20mm)
Voltage Rating
600VAC
Contact Material
Brass
Insulation Color
Natural
Insulation Height
0.394" (10.00mm)
Base Product Number
CP-01406
Insulation Material
Polyamide (PA66), Nylon 6/6
Number of Positions
6
Row Spacing - Mating
0.165" (4.20mm)
Contact Finish - Post
Tin
Contact Length - Post
0.138" (3.50mm)
Current Rating (Amps)
9A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Cvilux USA |
| Style | Board to Cable/Wire |
| Series | CP-01 |
| Features | Board Lock |
| Packaging | Bag |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 2 |
| Pitch - Mating | 0.165" (4.20mm) |
| Voltage Rating | 600VAC |
| Contact Material | Brass |
| Insulation Color | Natural |
| Insulation Height | 0.394" (10.00mm) |
| Base Product Number | CP-01406 |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Number of Positions | 6 |
| Row Spacing - Mating | 0.165" (4.20mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.138" (3.50mm) |
| Current Rating (Amps) | 9A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
