Step1: Product
Cvilux USA CI0102M1HR0-NH

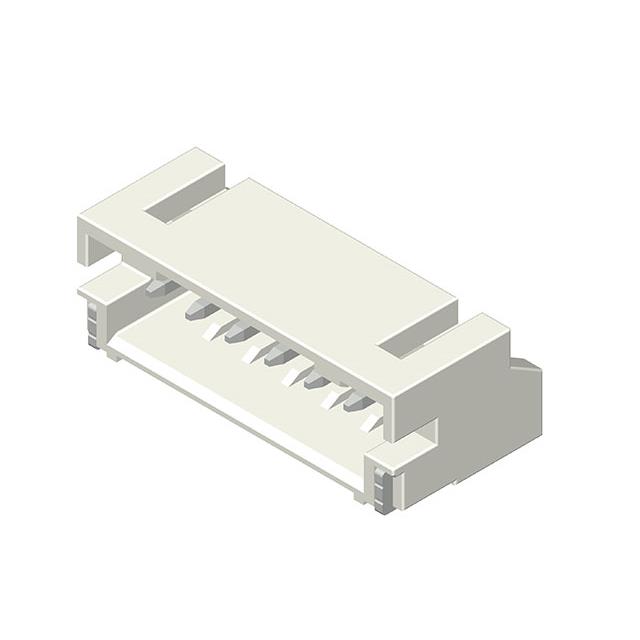

Image shown is a representation only
Manufacturer
Manufacturer No
CI0102M1HR0-NH
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
2 POS 2.00MM(.079) SINGLE ROW SM
Detailed Description
Connector Header Surface Mount, Right Angle 2 position 0.079" (2.00mm)
DataSheet
Mfr
Cvilux USA
Style
Board to Cable/Wire
Series
CI01
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Detent Lock
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
250VAC/DC
Contact Material
Brass
Insulation Color
Natural
Insulation Height
0.217" (5.51mm)
Base Product Number
CI0102M1
Insulation Material
Polyamide (PA6T), Nylon 6T, Halogen Free
Number of Positions
2
Contact Finish - Post
Tin
Current Rating (Amps)
2A
Operating Temperature
-25°C ~ 105°C
Contact Finish - Mating
Tin
Contact Length - Mating
0.142" (3.61mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
120.0µin (3.05µm)
| Attribute | Value |
|---|---|
| Mfr | Cvilux USA |
| Style | Board to Cable/Wire |
| Series | CI01 |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Detent Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 250VAC/DC |
| Contact Material | Brass |
| Insulation Color | Natural |
| Insulation Height | 0.217" (5.51mm) |
| Base Product Number | CI0102M1 |
| Insulation Material | Polyamide (PA6T), Nylon 6T, Halogen Free |
| Number of Positions | 2 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 2A |
| Operating Temperature | -25°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.142" (3.61mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 120.0µin (3.05µm) |
