Step1: Product

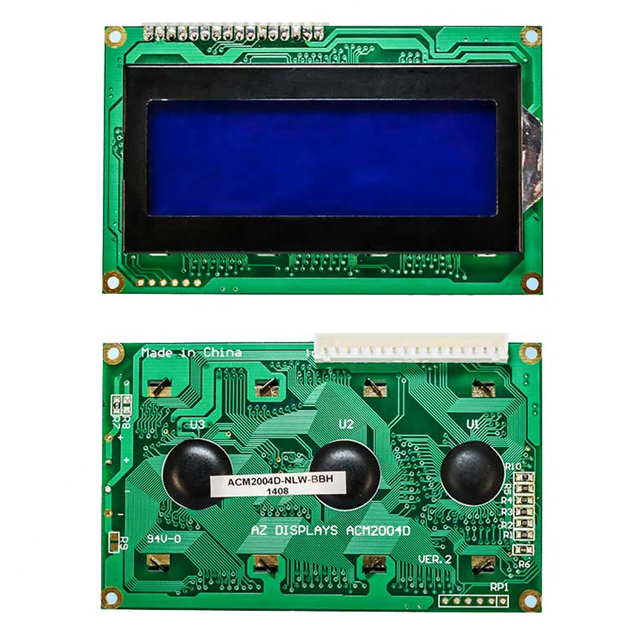

AZ Displays ACM2004G-NLW-BTW
Image shown is a representation only
Manufacturer
Manufacturer No
ACM2004G-NLW-BTW
Packaging
Box
Description
20X4 CHARACTER LCD TRANSMISSIVE
Detailed Description
Character Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic, TN - Twisted Nematic LED 98.00mm x 60.00mm x 14.00mm
Datasheet
Series
ACM2004G
Dot Size
0.55mm W x 0.55mm H
Backlight
LED
Packaging
Box
Display Mode
Transmissive
Display Type
STN - Super-Twisted Nematic, TN - Twisted Nematic
Manufacturer
AZ Displays
Viewing Area
76.00mm L x 25.20mm W
Character Size
4.75mm H x 2.95mm W
Display Format
20 x 4
Controller Type
KS0066
Character Format
5 x 8 Dots
Voltage - Supply
2.7V ~ 5.5V
Outline L x W x H
98.00mm x 60.00mm x 14.00mm
Operating Temperature
-20°C ~ 70°C
| Attribute | Value |
|---|---|
| Series | ACM2004G |
| Dot Size | 0.55mm W x 0.55mm H |
| Backlight | LED |
| Packaging | Box |
| Display Mode | Transmissive |
| Display Type | STN - Super-Twisted Nematic, TN - Twisted Nematic |
| Manufacturer | AZ Displays |
| Viewing Area | 76.00mm L x 25.20mm W |
| Character Size | 4.75mm H x 2.95mm W |
| Display Format | 20 x 4 |
| Controller Type | KS0066 |
| Character Format | 5 x 8 Dots |
| Voltage - Supply | 2.7V ~ 5.5V |
| Outline L x W x H | 98.00mm x 60.00mm x 14.00mm |
| Operating Temperature | -20°C ~ 70°C |
