Step1: Product

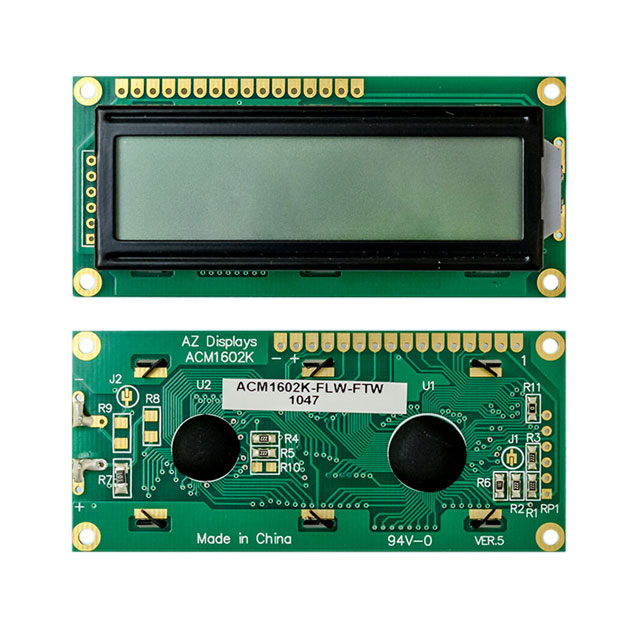

AZ Displays ACM1602K-FL-GTW
Image shown is a representation only
Manufacturer
Manufacturer No
ACM1602K-FL-GTW
Packaging
Box
Description
16 X 2 CHARACTER MONOCHROME
Detailed Description
Character Display Module Reflective, Transflective, Transmissive 5 x 8 Dots STN - Super-Twisted Nematic, TN - Twisted Nematic LED 80.00mm x 36.00mm x 13.50mm
Datasheet
Series
ACM1602K(3.8V)
Dot Size
0.56mm W x 0.61mm H
Backlight
LED
Packaging
Box
Display Mode
Reflective, Transflective, Transmissive
Display Type
STN - Super-Twisted Nematic, TN - Twisted Nematic
Manufacturer
AZ Displays
Viewing Area
64.50mm L x 16.40mm W
Character Size
5.23mm H x 3.00mm W
Display Format
16 x 2
Controller Type
SPLC780D1
Character Format
5 x 8 Dots
Voltage - Supply
4.75V ~ 5.25V
Outline L x W x H
80.00mm x 36.00mm x 13.50mm
Number of Characters
32.0
Operating Temperature
-20°C ~ 70°C
| Attribute | Value |
|---|---|
| Series | ACM1602K(3.8V) |
| Dot Size | 0.56mm W x 0.61mm H |
| Backlight | LED |
| Packaging | Box |
| Display Mode | Reflective, Transflective, Transmissive |
| Display Type | STN - Super-Twisted Nematic, TN - Twisted Nematic |
| Manufacturer | AZ Displays |
| Viewing Area | 64.50mm L x 16.40mm W |
| Character Size | 5.23mm H x 3.00mm W |
| Display Format | 16 x 2 |
| Controller Type | SPLC780D1 |
| Character Format | 5 x 8 Dots |
| Voltage - Supply | 4.75V ~ 5.25V |
| Outline L x W x H | 80.00mm x 36.00mm x 13.50mm |
| Number of Characters | 32.0 |
| Operating Temperature | -20°C ~ 70°C |
