Step1: Product

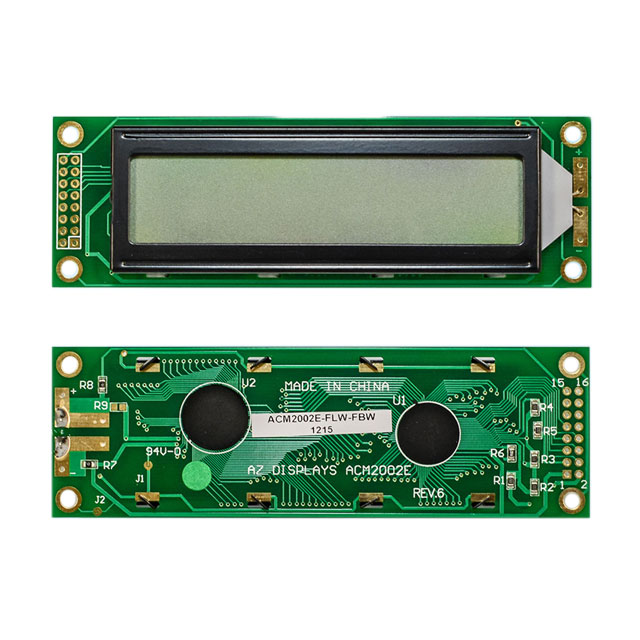

AZ Displays ACM2002E-FL-YBW-R
Image shown is a representation only
Manufacturer
Manufacturer No
ACM2002E-FL-YBW-R
Packaging
Box
Description
20 X 2 CHARACTER MONOCHROME
Detailed Description
Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green 116.00mm x 37.00mm x 14.00mm
DataSheet
Dot Size
0.60mm W x 0.65mm H
Backlight
LED - Yellow/Green
Packaging
Box
Part Status
Active
Display Mode
Transflective
Display Type
STN - Super-Twisted Nematic
Manufacturer
AZ Displays
Viewing Area
83.00mm L x 18.60mm W
Character Size
5.55mm H x 3.20mm W
Display Format
20 x 2
Controller Type
ST7066U-0A
Character Format
5 x 8 Dots
Voltage - Supply
4.8V ~ 5.2V
Outline L x W x H
116.00mm x 37.00mm x 14.00mm
Number of Characters
40.0
Operating Temperature
-20°C ~ 70°C
| Attribute | Value |
|---|---|
| Dot Size | 0.60mm W x 0.65mm H |
| Backlight | LED - Yellow/Green |
| Packaging | Box |
| Part Status | Active |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Manufacturer | AZ Displays |
| Viewing Area | 83.00mm L x 18.60mm W |
| Character Size | 5.55mm H x 3.20mm W |
| Display Format | 20 x 2 |
| Controller Type | ST7066U-0A |
| Character Format | 5 x 8 Dots |
| Voltage - Supply | 4.8V ~ 5.2V |
| Outline L x W x H | 116.00mm x 37.00mm x 14.00mm |
| Number of Characters | 40.0 |
| Operating Temperature | -20°C ~ 70°C |
