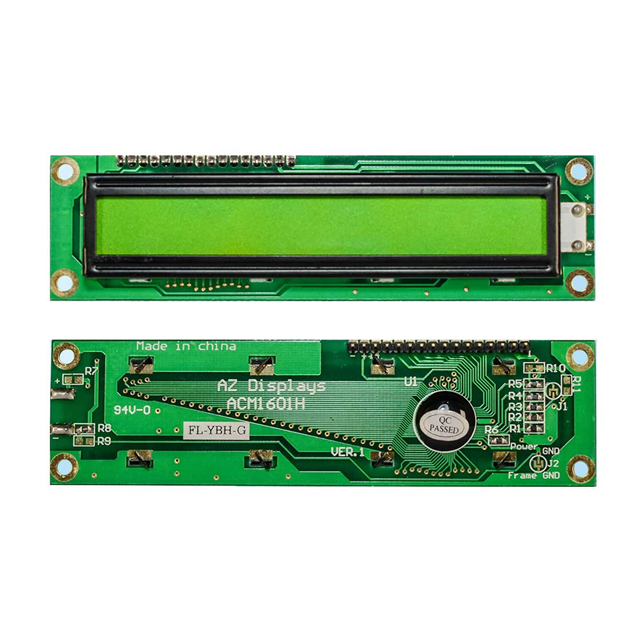

AZ Displays ACM1601H-FL-YBW
Image shown is a representation only
Manufacturer
Manufacturer No
ACM1601H-FL-YBW
Packaging
Box
Description
16X1 CHARACTER LCD TRANSFLECTIVE
Detailed Description
Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic, TN - Twisted Nematic LED 122.00mm x 33.00mm x 14.50mm
DataSheet
Series
ACM1601H
Dot Size
0.92mm W x 1.10mm H
Backlight
LED
Packaging
Box
Part Status
Active
Display Mode
Transflective
Display Type
STN - Super-Twisted Nematic, TN - Twisted Nematic
Manufacturer
AZ Displays
Viewing Area
99.00mm L x 13.00mm W
Character Size
9.22mm H x 4.84mm W
Display Format
16 x 1
Controller Type
KS0066
Character Format
5 x 8 Dots
Voltage - Supply
2.7V ~ 5.5V
Outline L x W x H
122.00mm x 33.00mm x 14.50mm
Operating Temperature
-20°C ~ 70°C
| Attribute | Value |
|---|---|
| Series | ACM1601H |
| Dot Size | 0.92mm W x 1.10mm H |
| Backlight | LED |
| Packaging | Box |
| Part Status | Active |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic, TN - Twisted Nematic |
| Manufacturer | AZ Displays |
| Viewing Area | 99.00mm L x 13.00mm W |
| Character Size | 9.22mm H x 4.84mm W |
| Display Format | 16 x 1 |
| Controller Type | KS0066 |
| Character Format | 5 x 8 Dots |
| Voltage - Supply | 2.7V ~ 5.5V |
| Outline L x W x H | 122.00mm x 33.00mm x 14.50mm |
| Operating Temperature | -20°C ~ 70°C |
