Step1: Product

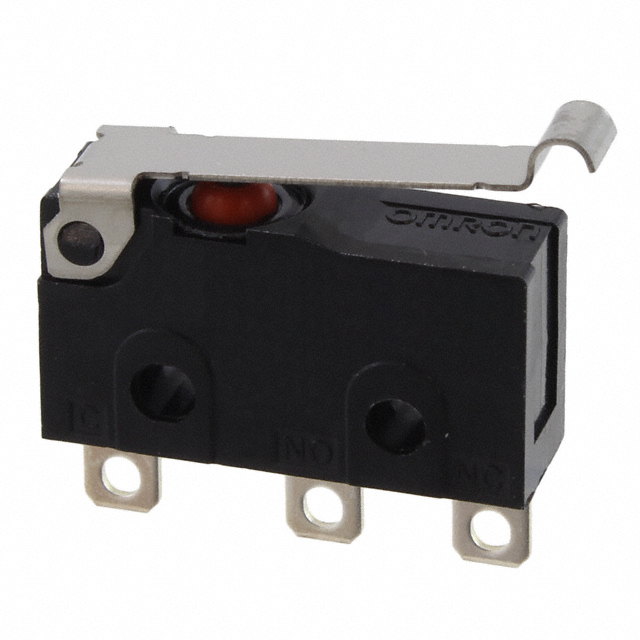

Aratas America LLC D2SW-01L3-3MS
Image shown is a representation only
Manufacturer
Manufacturer No
D2SW-01L3-3MS
Packaging
Bulk
Description
SWITCH SNP ACT SPST-NO 0.1A 125V
Detailed Description
Switch SPST-NO Chassis Mount
DataSheet
Series
D2SW
Circuit
SPST-NO
Packaging
Bulk
Overtravel
0.040" (1.0mm)
Part Status
Active
Manufacturer
Aratas America LLC
Actuator Type
Lever, Simulated Roller
Mounting Type
Chassis Mount
Release Force
6.118gf
Electrical Life
200,000 Cycles
Mechanical Life
5,000,000 Cycles
Operating Force
60gf
Switch Function
Off-Mom
Termination Style
Wire Leads
Ingress Protection
IP67 - Dust Tight, Waterproof
Operating Position
0.420" (10.7mm)
Base Product Number
D2S
Differential Travel
0.031" (0.8mm)
Voltage Rating - AC
125 V
Voltage Rating - DC
30 V
Current Rating (Amps)
100mA (AC/DC)
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Series | D2SW |
| Circuit | SPST-NO |
| Packaging | Bulk |
| Overtravel | 0.040" (1.0mm) |
| Part Status | Active |
| Manufacturer | Aratas America LLC |
| Actuator Type | Lever, Simulated Roller |
| Mounting Type | Chassis Mount |
| Release Force | 6.118gf |
| Electrical Life | 200,000 Cycles |
| Mechanical Life | 5,000,000 Cycles |
| Operating Force | 60gf |
| Switch Function | Off-Mom |
| Termination Style | Wire Leads |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Position | 0.420" (10.7mm) |
| Base Product Number | D2S |
| Differential Travel | 0.031" (0.8mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Current Rating (Amps) | 100mA (AC/DC) |
| Operating Temperature | -40°C ~ 85°C |
