Step1: Product
Aratas America LLC D3V-11-1C4

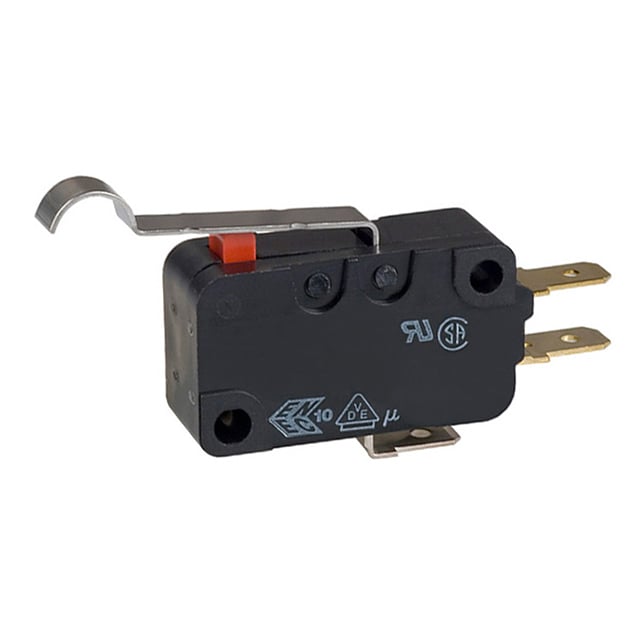

Image shown is a representation only
Manufacturer
Manufacturer No
D3V-11-1C4
Packaging
Bulk
Description
SWITCH SNAP ACTION SPDT 11A 250V
Detailed Description
Switch SPDT Chassis Mount
Datasheet
Series
D3V
Circuit
SPDT
Packaging
Bulk
Pretravel
0.047" (1.2mm)
Overtravel
0.040" (1.0mm)
Manufacturer
Aratas America LLC
Actuator Type
Round (Pin Plunger)
Mounting Type
Chassis Mount
Release Force
15gf
Electrical Life
200,000 Cycles
Mechanical Life
10,000,000 Cycles
Operating Force
100gf
Switch Function
On-Mom
Termination Style
Quick Connect - 0.250" (6.3mm)
Ingress Protection
IP40
Operating Position
0.579" (14.7mm)
Base Product Number
D3V
Differential Travel
0.016" (0.4mm)
Voltage Rating - AC
250 V
Voltage Rating - DC
125 V
Current Rating (Amps)
11A (AC), 600mA (DC)
Operating Temperature
-25°C ~ 105°C
| Attribute | Value |
|---|---|
| Series | D3V |
| Circuit | SPDT |
| Packaging | Bulk |
| Pretravel | 0.047" (1.2mm) |
| Overtravel | 0.040" (1.0mm) |
| Manufacturer | Aratas America LLC |
| Actuator Type | Round (Pin Plunger) |
| Mounting Type | Chassis Mount |
| Release Force | 15gf |
| Electrical Life | 200,000 Cycles |
| Mechanical Life | 10,000,000 Cycles |
| Operating Force | 100gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Ingress Protection | IP40 |
| Operating Position | 0.579" (14.7mm) |
| Base Product Number | D3V |
| Differential Travel | 0.016" (0.4mm) |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
| Current Rating (Amps) | 11A (AC), 600mA (DC) |
| Operating Temperature | -25°C ~ 105°C |
