Step1: Product

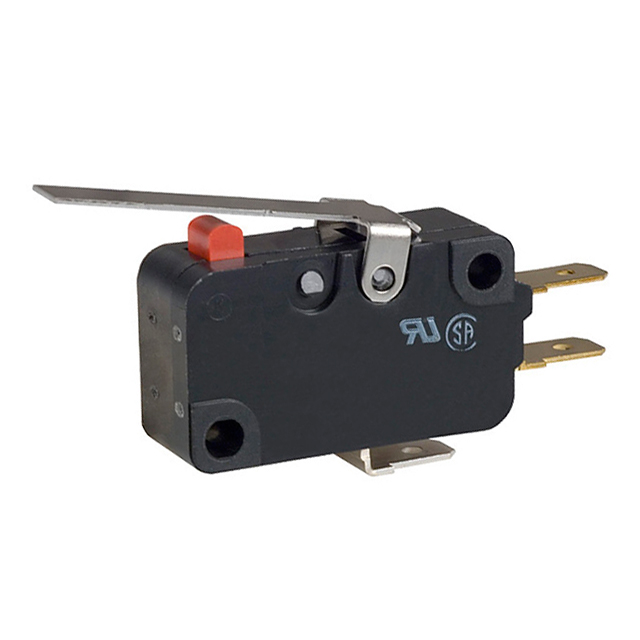

Aratas America LLC D3V-113M-1A4
Image shown is a representation only
Manufacturer
Manufacturer No
D3V-113M-1A4
Packaging
Bulk
Description
SWITCH SNAP ACTION SPDT 11A 250V
Detailed Description
Switch SPDT Chassis Mount
DataSheet
Series
D3V
Circuit
SPDT
Packaging
Bulk
Pretravel
0.354" (9.0mm)
Overtravel
0.125" (3.2mm)
Part Status
Active
Manufacturer
Aratas America LLC
Actuator Type
Lever, Straight
Mounting Type
Chassis Mount
Electrical Life
200,000 Cycles
Mechanical Life
10,000,000 Cycles
Operating Force
35gf
Switch Function
On-Mom
Termination Style
Solder, Quick Connect - 0.187" (4.7mm)
Ingress Protection
IP40
Operating Position
0.600" (15.2mm)
Base Product Number
D3V
Differential Travel
0.110" (2.8mm)
Voltage Rating - AC
250 V
Voltage Rating - DC
30 V
Current Rating (Amps)
11A (AC), 6A (DC)
Operating Temperature
-25°C ~ 105°C
| Attribute | Value |
|---|---|
| Series | D3V |
| Circuit | SPDT |
| Packaging | Bulk |
| Pretravel | 0.354" (9.0mm) |
| Overtravel | 0.125" (3.2mm) |
| Part Status | Active |
| Manufacturer | Aratas America LLC |
| Actuator Type | Lever, Straight |
| Mounting Type | Chassis Mount |
| Electrical Life | 200,000 Cycles |
| Mechanical Life | 10,000,000 Cycles |
| Operating Force | 35gf |
| Switch Function | On-Mom |
| Termination Style | Solder, Quick Connect - 0.187" (4.7mm) |
| Ingress Protection | IP40 |
| Operating Position | 0.600" (15.2mm) |
| Base Product Number | D3V |
| Differential Travel | 0.110" (2.8mm) |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 30 V |
| Current Rating (Amps) | 11A (AC), 6A (DC) |
| Operating Temperature | -25°C ~ 105°C |
