Step1: Product
Aratas America LLC D3V-6G5-3C23

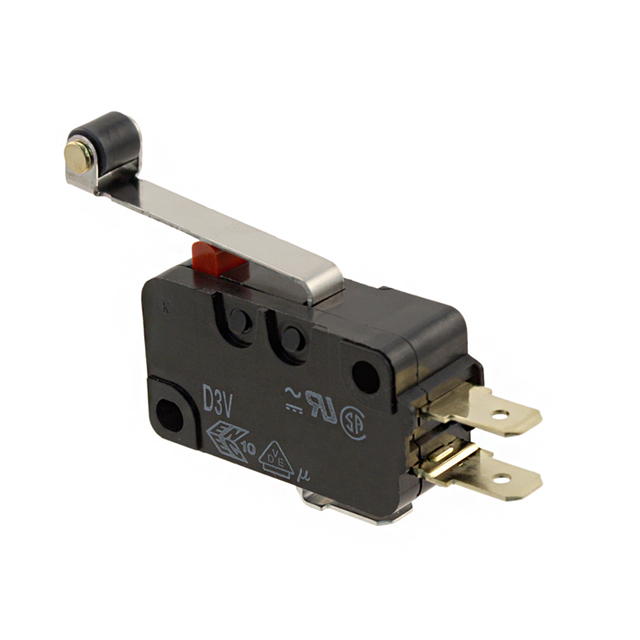

Image shown is a representation only
Manufacturer
Manufacturer No
D3V-6G5-3C23
Packaging
Bulk
Description
SWITCH SNAP ACT SPST-NO 6A 250V
Detailed Description
Switch SPST-NO Chassis Mount
DataSheet
Series
D3V
Circuit
SPST-NO
Packaging
Bulk
Pretravel
0.063" (1.6mm)
Overtravel
0.031" (0.79mm)
Part Status
Active
Manufacturer
Aratas America LLC
Actuator Type
Lever, Roller
Mounting Type
Chassis Mount
Release Force
6.118gf
Electrical Life
500,000 Cycles
Mechanical Life
10,000,000 Cycles
Operating Force
60gf
Switch Function
Off-Mom
Termination Style
Quick Connect - 0.187" (4.7mm)
Ingress Protection
IP40
Operating Position
0.815" (20.7mm)
Base Product Number
D3V
Differential Travel
0.020" (0.5mm)
Voltage Rating - AC
250 V
Current Rating (Amps)
6A (AC)
Operating Temperature
-25°C ~ 105°C
| Attribute | Value |
|---|---|
| Series | D3V |
| Circuit | SPST-NO |
| Packaging | Bulk |
| Pretravel | 0.063" (1.6mm) |
| Overtravel | 0.031" (0.79mm) |
| Part Status | Active |
| Manufacturer | Aratas America LLC |
| Actuator Type | Lever, Roller |
| Mounting Type | Chassis Mount |
| Release Force | 6.118gf |
| Electrical Life | 500,000 Cycles |
| Mechanical Life | 10,000,000 Cycles |
| Operating Force | 60gf |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Ingress Protection | IP40 |
| Operating Position | 0.815" (20.7mm) |
| Base Product Number | D3V |
| Differential Travel | 0.020" (0.5mm) |
| Voltage Rating - AC | 250 V |
| Current Rating (Amps) | 6A (AC) |
| Operating Temperature | -25°C ~ 105°C |
