Step1: Product

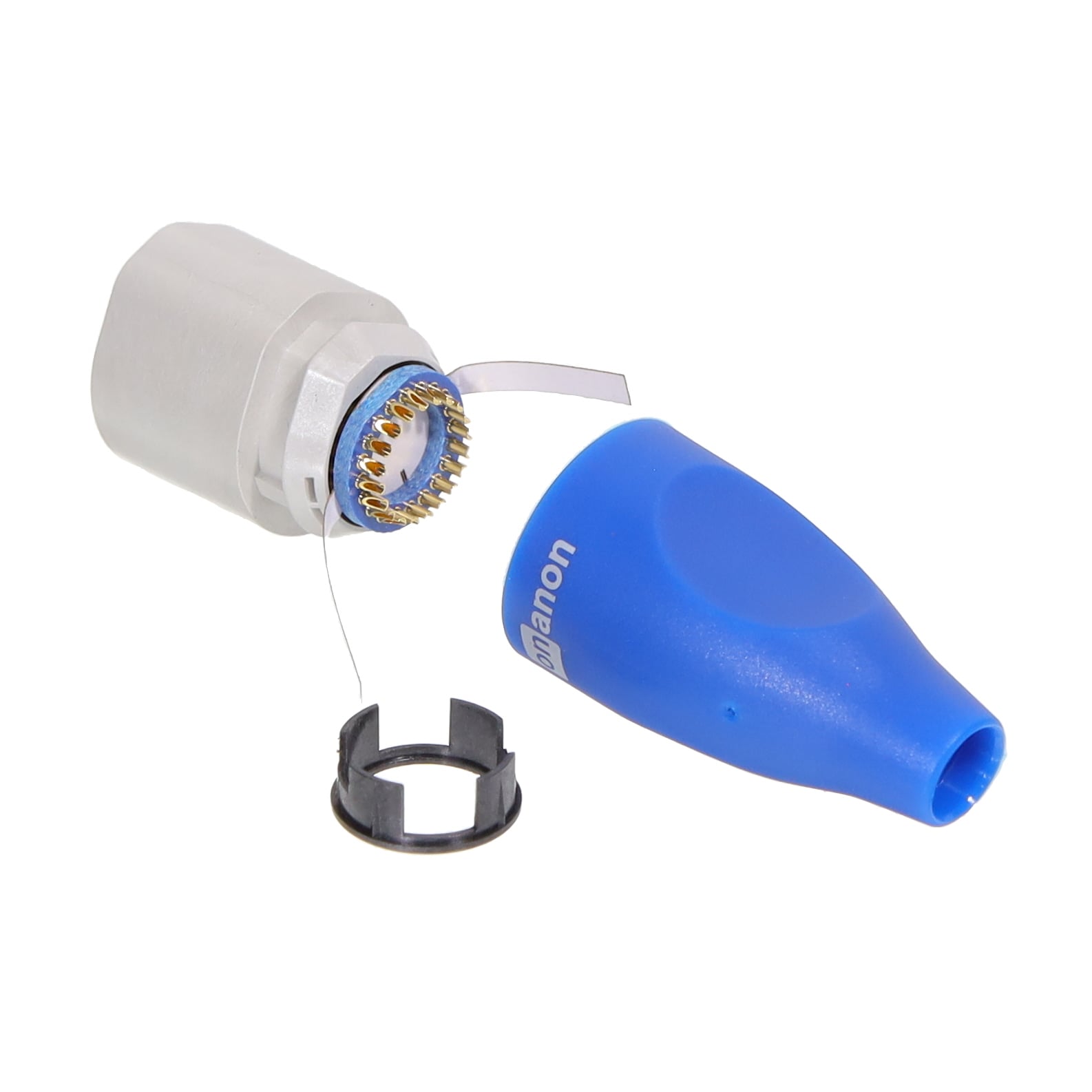

Amphenol Onanon 193-A003-20S-U280-W
Image shown is a representation only
Manufacturer
Manufacturer No
193-A003-20S-U280-W
Packaging
Bag
Description
MAGCONNECT HERO IN-LINE RECEPTA
Detailed Description
20 Position Circular Connector Plug, Male Pins Solder Cup
DataSheet
Mfr
Amphenol Onanon
Color
Blue
Series
HERO
Features
Backshell
Packaging
Bag
Shielding
Unshielded
Orientation
N (Normal)
Part Status
Active
Termination
Solder Cup
Applications
Aerospace, Commercial, Industrial, Medical, Military
Cable Opening
0.280" (7.10mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pins
Fastening Type
Magnetic
Shell Material
Plastic
Voltage Rating
1000VAC, 1500VDC
Primary Material
Plastic
Number of Positions
20
Current Rating (Amps)
3A
| Attribute | Value |
|---|---|
| Mfr | Amphenol Onanon |
| Color | Blue |
| Series | HERO |
| Features | Backshell |
| Packaging | Bag |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Part Status | Active |
| Termination | Solder Cup |
| Applications | Aerospace, Commercial, Industrial, Medical, Military |
| Cable Opening | 0.280" (7.10mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Fastening Type | Magnetic |
| Shell Material | Plastic |
| Voltage Rating | 1000VAC, 1500VDC |
| Primary Material | Plastic |
| Number of Positions | 20 |
| Current Rating (Amps) | 3A |
