Step1: Product

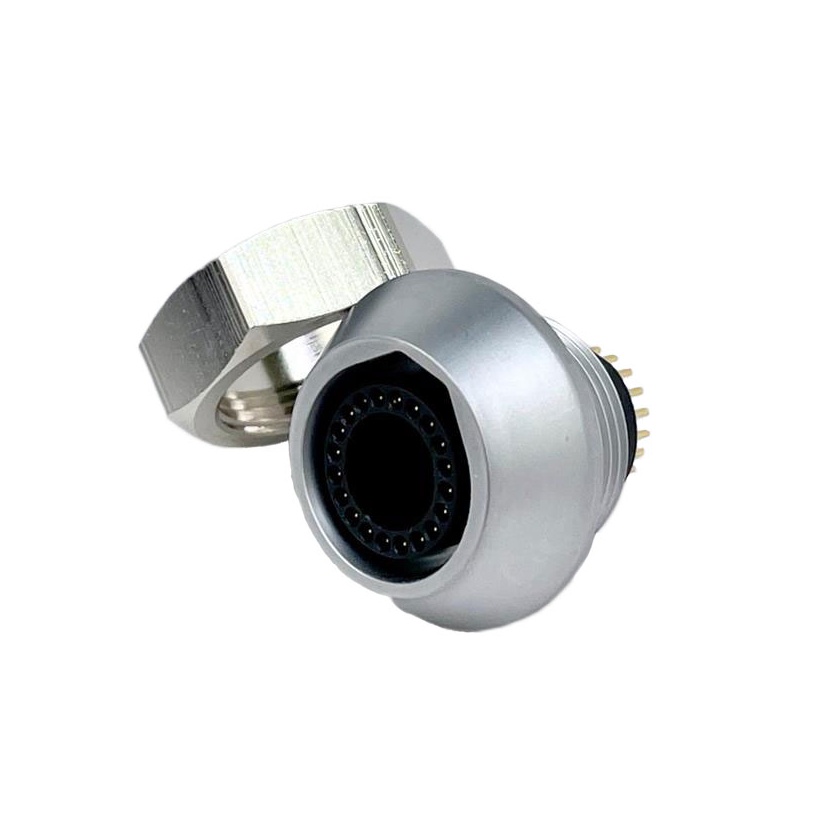

Amphenol Onanon 193-A002-20S-B
Image shown is a representation only
Manufacturer
Manufacturer No
193-A002-20S-B
Packaging
Box
Description
MAGCONNECT HERO PANEL MOUNT REC
Detailed Description
20 Position Circular Connector Receptacle, Male Pins Solder Cup
DataSheet
Mfr
Amphenol Onanon
Color
Silver
Series
HERO
Packaging
Box
Shielding
Unshielded
Orientation
N (Normal)
Part Status
Active
Termination
Solder Cup
Applications
Aerospace, Commercial, Medical, Military
Shell Finish
Chromium over Brass Alloy
Mounting Type
Free Hanging (In-Line); Panel Mount
Connector Type
Receptacle, Male Pins
Fastening Type
Magnetic
Shell Material
Brass
Voltage Rating
1000VAC, 1500VDC
Insert Material
Thermoplastic Polyester
Contact Material
Brass Alloy
Mounting Feature
Bulkhead - Front Side Nut
Primary Material
Metal
Number of Positions
20
Current Rating (Amps)
3A
Operating Temperature
0°C ~ 150°C
Contact Finish - Mating
Gold
| Attribute | Value |
|---|---|
| Mfr | Amphenol Onanon |
| Color | Silver |
| Series | HERO |
| Packaging | Box |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Part Status | Active |
| Termination | Solder Cup |
| Applications | Aerospace, Commercial, Medical, Military |
| Shell Finish | Chromium over Brass Alloy |
| Mounting Type | Free Hanging (In-Line); Panel Mount |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Magnetic |
| Shell Material | Brass |
| Voltage Rating | 1000VAC, 1500VDC |
| Insert Material | Thermoplastic Polyester |
| Contact Material | Brass Alloy |
| Mounting Feature | Bulkhead - Front Side Nut |
| Primary Material | Metal |
| Number of Positions | 20 |
| Current Rating (Amps) | 3A |
| Operating Temperature | 0°C ~ 150°C |
| Contact Finish - Mating | Gold |
