Step1: Product
Amphenol Onanon 234-A001-20S-U280-W

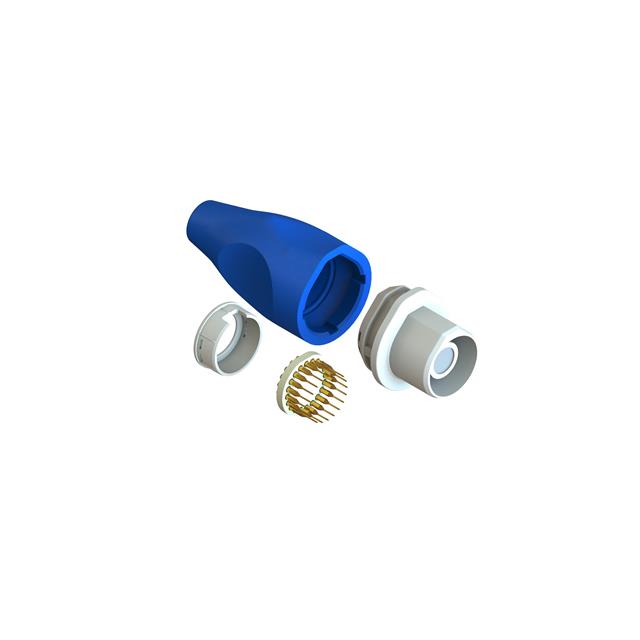

Image shown is a representation only
Manufacturer
Manufacturer No
234-A001-20S-U280-W
Packaging
Box
Description
MAGCONNECT ECHO PLUG KIT
Detailed Description
20 Position Circular Connector Plug, Male Pins Solder Cup
Datasheet
Mfr
Amphenol Onanon
Color
Blue
Series
MagConnect®|Echo
Packaging
Box
Shielding
Unshielded
Orientation
1
Termination
Solder Cup
Applications
Aerospace, Commercial, Industrial, Medical, Military
Cable Opening
0.280" (7.10mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pins
Fastening Type
Magnetic
Voltage Rating
1000VAC, 1500VDC
Insert Material
Thermoplastic Polyester
Contact Material
Brass
Primary Material
Plastic
Number of Positions
20
Current Rating (Amps)
3A
Operating Temperature
0°C ~ 150°C
Contact Finish - Mating
Gold
| Attribute | Value |
|---|---|
| Mfr | Amphenol Onanon |
| Color | Blue |
| Series | MagConnect®|Echo |
| Packaging | Box |
| Shielding | Unshielded |
| Orientation | 1 |
| Termination | Solder Cup |
| Applications | Aerospace, Commercial, Industrial, Medical, Military |
| Cable Opening | 0.280" (7.10mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Fastening Type | Magnetic |
| Voltage Rating | 1000VAC, 1500VDC |
| Insert Material | Thermoplastic Polyester |
| Contact Material | Brass |
| Primary Material | Plastic |
| Number of Positions | 20 |
| Current Rating (Amps) | 3A |
| Operating Temperature | 0°C ~ 150°C |
| Contact Finish - Mating | Gold |
