Step1: Product

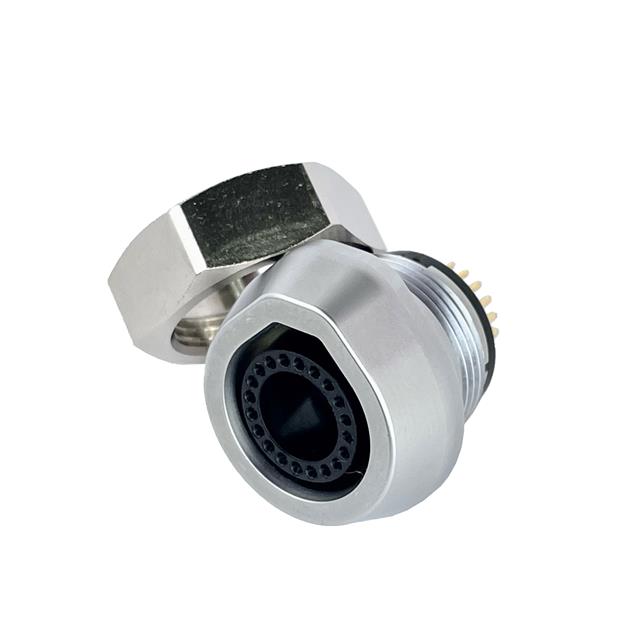

Amphenol Onanon 234-A002
Image shown is a representation only
Manufacturer
Manufacturer No
234-A002
Packaging
Box
Description
MAGCONNECT ECHO RECEPTACLE
Detailed Description
20 Position Circular Connector Receptacle, Female Sockets Solder
DataSheet
Mfr
Amphenol Onanon
Color
Silver
Series
MagConnect®|Echo
Packaging
Box
Shielding
Unshielded
Orientation
1
Part Status
Active
Termination
Solder
Applications
Aerospace, Commercial, Industrial, Medical, Military
Shell Finish
Chromium over Brass Alloy
Mounting Type
Panel Mount, Through Hole
Connector Type
Receptacle, Female Sockets
Fastening Type
Magnetic
Shell Material
Brass
Voltage Rating
1000VAC, 1500VDC
Insert Material
Thermoplastic Polyester
Contact Material
Brass
Primary Material
Metal
Number of Positions
20
Current Rating (Amps)
3A
Operating Temperature
0°C ~ 150°C
Contact Finish - Mating
Gold
| Attribute | Value |
|---|---|
| Mfr | Amphenol Onanon |
| Color | Silver |
| Series | MagConnect®|Echo |
| Packaging | Box |
| Shielding | Unshielded |
| Orientation | 1 |
| Part Status | Active |
| Termination | Solder |
| Applications | Aerospace, Commercial, Industrial, Medical, Military |
| Shell Finish | Chromium over Brass Alloy |
| Mounting Type | Panel Mount, Through Hole |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Magnetic |
| Shell Material | Brass |
| Voltage Rating | 1000VAC, 1500VDC |
| Insert Material | Thermoplastic Polyester |
| Contact Material | Brass |
| Primary Material | Metal |
| Number of Positions | 20 |
| Current Rating (Amps) | 3A |
| Operating Temperature | 0°C ~ 150°C |
| Contact Finish - Mating | Gold |
