Step1: Product
Amphenol Aerospace Operations MS3126F14-18SW

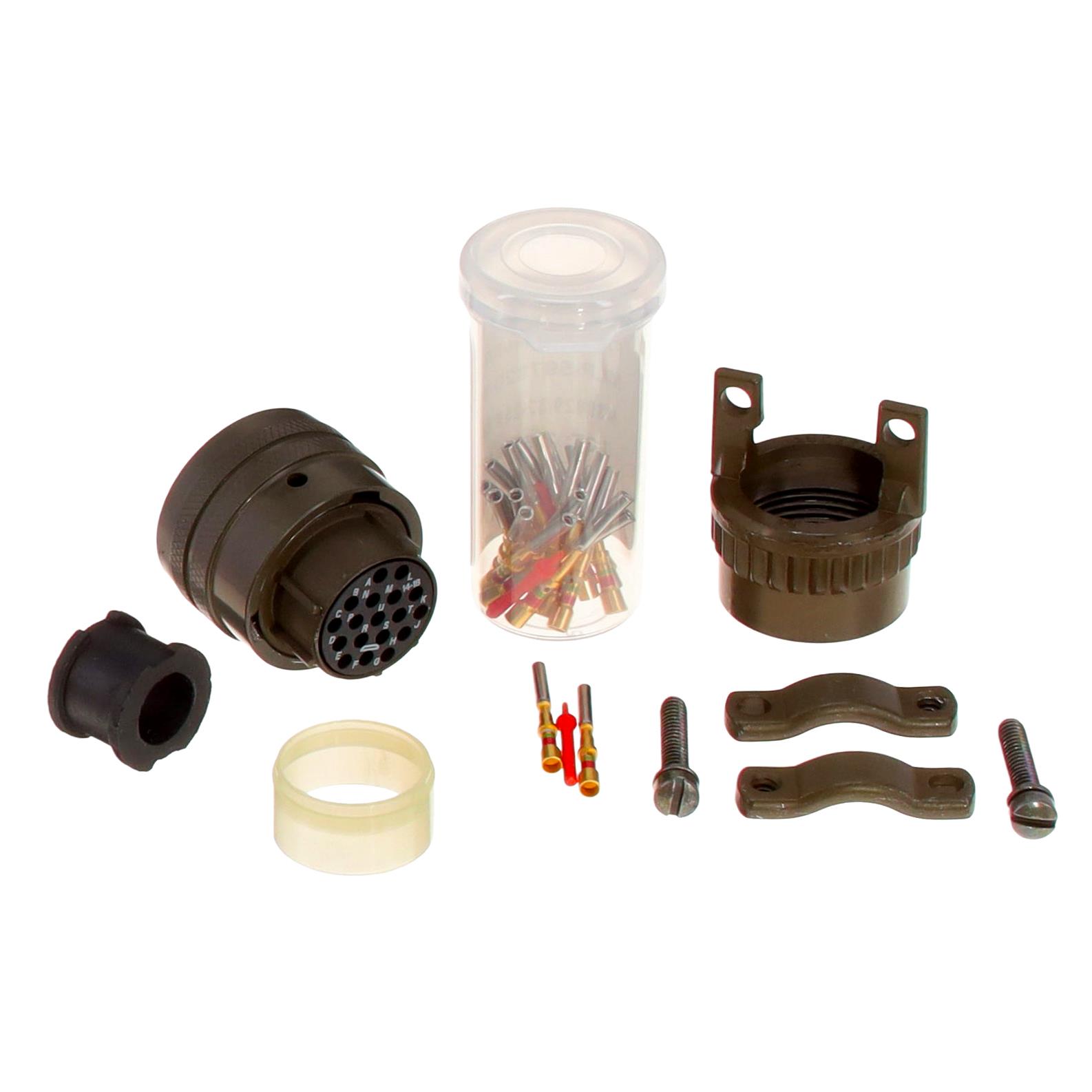

Image shown is a representation only
Manufacturer
Manufacturer No
MS3126F14-18SW
Packaging
Bag
Description
MIL-26482 MS/PT/CMB PLUG
Detailed Description
18 Position Circular Connector Plug, Female Sockets Crimp
DataSheet
Mfr
Amphenol Aerospace Operations
Color
Olive Drab
Grade
Military
Series
PT
Features
Coupling Nut, Strain Relief
Packaging
Bag
Shielding
Unshielded
Orientation
W
Part Status
Active
Termination
Crimp
Applications
Aerospace, Industrial, Instrumentation, Mass Transit, Military
Shell Finish
Olive Drab Chromate over Cadmium
Cable Opening
0.375" (9.53mm)
Mounting Type
Free Hanging (In-Line)
Qualification
MIL-DTL-26482 Series I
Connector Type
Plug, Female Sockets
Fastening Type
Bayonet Lock
Shell Material
Aluminum
Voltage Rating
600VAC
Insert Material
Neoprene
Contact Material
Copper Alloy
Primary Material
Metal
Ingress Protection
Environment Resistant
Base Product Number
MS3126F14
Number of Positions
18
Shell Size - Insert
14-18
Current Rating (Amps)
7.5A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
| Attribute | Value |
|---|---|
| Mfr | Amphenol Aerospace Operations |
| Color | Olive Drab |
| Grade | Military |
| Series | PT |
| Features | Coupling Nut, Strain Relief |
| Packaging | Bag |
| Shielding | Unshielded |
| Orientation | W |
| Part Status | Active |
| Termination | Crimp |
| Applications | Aerospace, Industrial, Instrumentation, Mass Transit, Military |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Cable Opening | 0.375" (9.53mm) |
| Mounting Type | Free Hanging (In-Line) |
| Qualification | MIL-DTL-26482 Series I |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Bayonet Lock |
| Shell Material | Aluminum |
| Voltage Rating | 600VAC |
| Insert Material | Neoprene |
| Contact Material | Copper Alloy |
| Primary Material | Metal |
| Ingress Protection | Environment Resistant |
| Base Product Number | MS3126F14 |
| Number of Positions | 18 |
| Shell Size - Insert | 14-18 |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
