Step1: Product
Amphenol Industrial Operations MS3126F14-19P

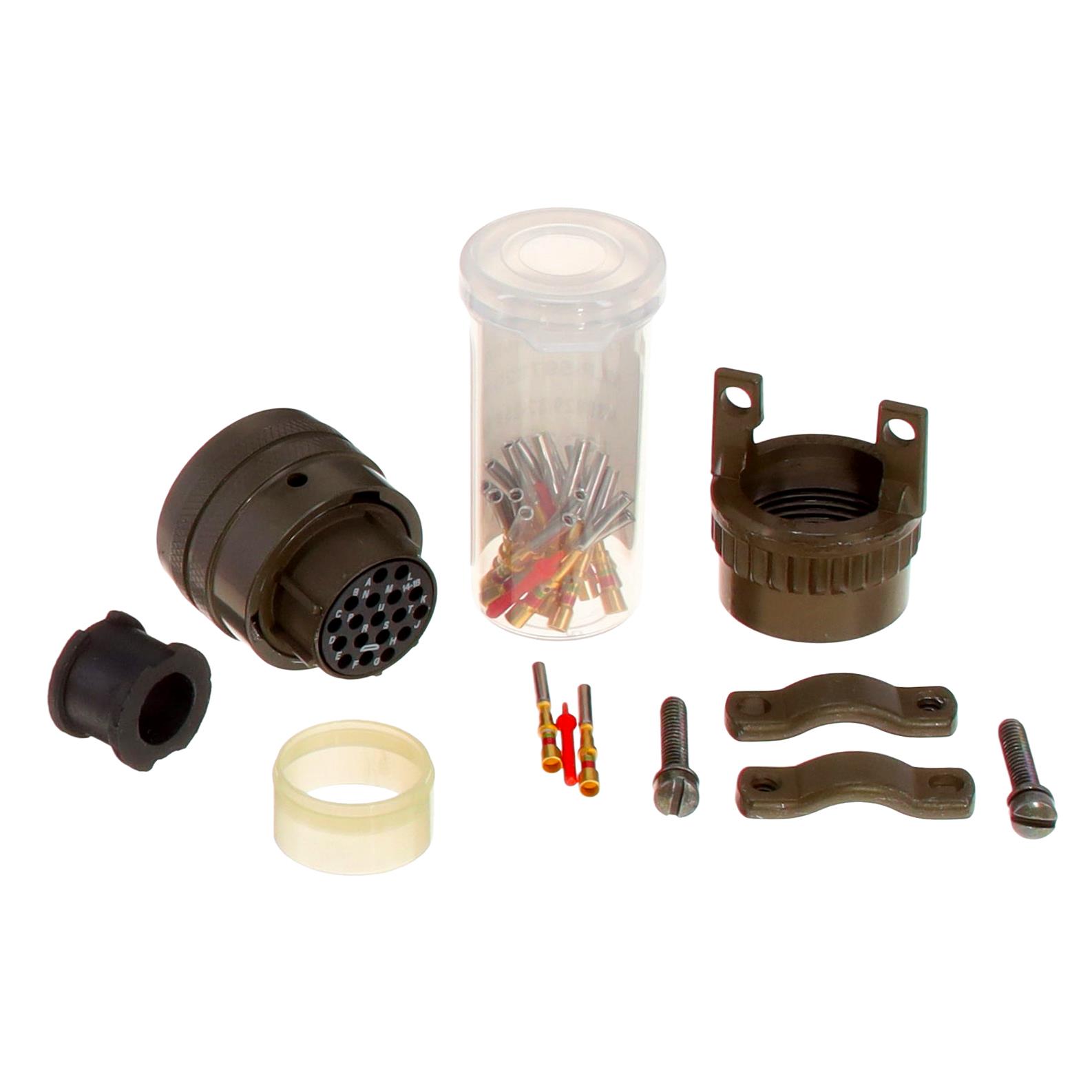

Image shown is a representation only
Manufacturer
Manufacturer No
MS3126F14-19P
Packaging
Retail Package
Description
MIL-C-26482 SERIES 1 CONNECTOR,
Detailed Description
19 Position Circular Connector Plug, Male Pins Crimp
DataSheet
Mfr
Amphenol Industrial Operations
Color
Olive Drab
Grade
Military
Series
PT
Features
Backshell, Cable Clamp, Coupling Nut
Packaging
Retail Package
Shielding
Unshielded
Orientation
N (Normal)
Part Status
Active
Termination
Crimp
Applications
Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military
Shell Finish
Olive Drab Chromate over Cadmium
Mounting Type
Free Hanging (In-Line)
Qualification
MIL-DTL-26482 Series I
Connector Type
Plug, Male Pins
Fastening Type
Bayonet Lock
Shell Material
Aluminum Alloy
Insert Material
Neoprene
Contact Material
Copper Alloy
Primary Material
Metal
Ingress Protection
Environment Resistant
Base Product Number
MS3126F14
Number of Positions
19
Shell Size - Insert
14-19
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Silver
Backshell Material, Plating
Aluminum Alloy, Olive Drab Chromate over Cadmium
| Attribute | Value |
|---|---|
| Mfr | Amphenol Industrial Operations |
| Color | Olive Drab |
| Grade | Military |
| Series | PT |
| Features | Backshell, Cable Clamp, Coupling Nut |
| Packaging | Retail Package |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Part Status | Active |
| Termination | Crimp |
| Applications | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Mounting Type | Free Hanging (In-Line) |
| Qualification | MIL-DTL-26482 Series I |
| Connector Type | Plug, Male Pins |
| Fastening Type | Bayonet Lock |
| Shell Material | Aluminum Alloy |
| Insert Material | Neoprene |
| Contact Material | Copper Alloy |
| Primary Material | Metal |
| Ingress Protection | Environment Resistant |
| Base Product Number | MS3126F14 |
| Number of Positions | 19 |
| Shell Size - Insert | 14-19 |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Silver |
| Backshell Material, Plating | Aluminum Alloy, Olive Drab Chromate over Cadmium |
