Step1: Product
Amphenol Aerospace Operations MS3121F16-26P

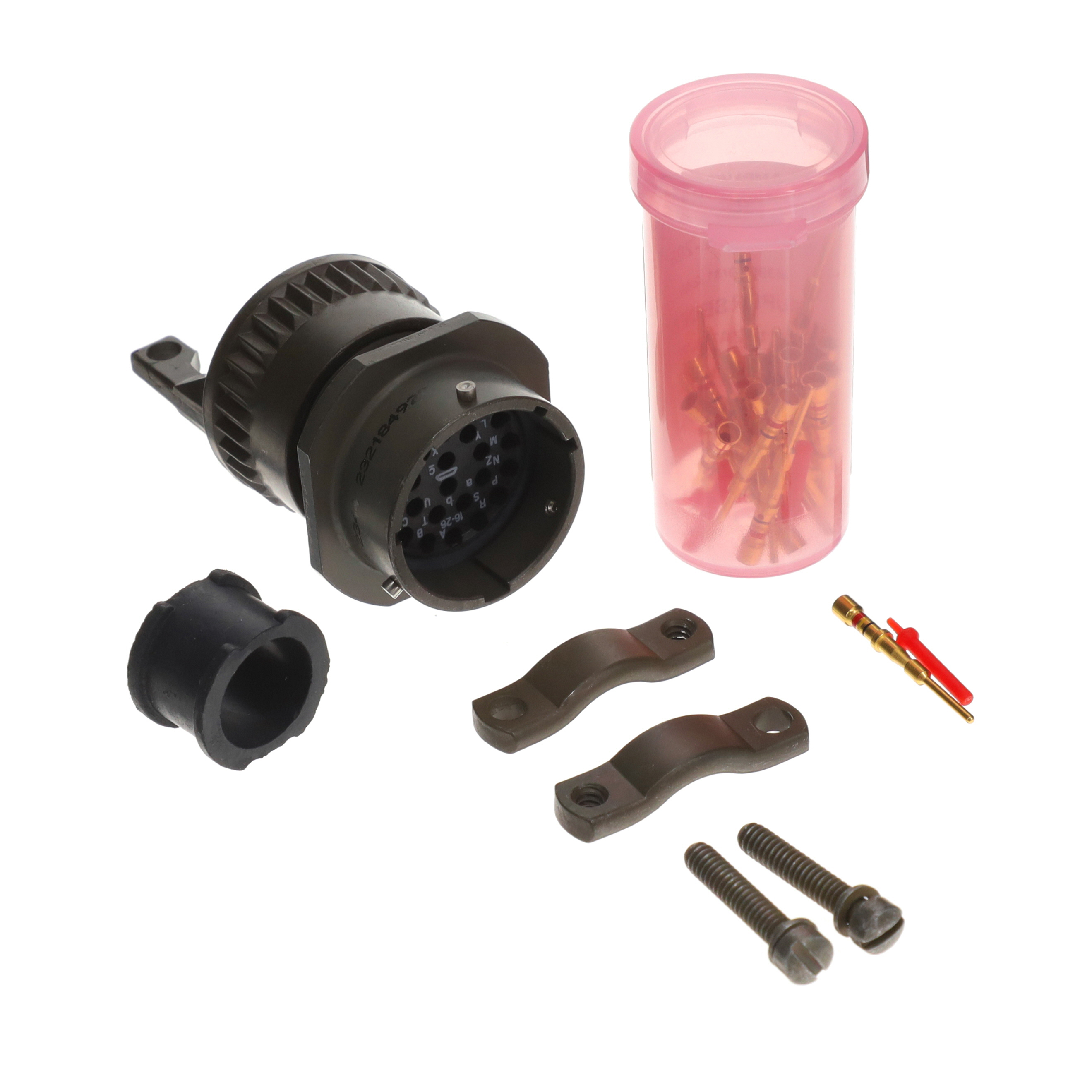

Image shown is a representation only
Manufacturer
Manufacturer No
MS3121F16-26P
Packaging
Bag
Description
MIL-26482 MS/PT/CMB RECEPT
Detailed Description
26 Position Circular Connector Receptacle, Male Pins Crimp
DataSheet
Mfr
Amphenol Aerospace Operations
Color
Olive Drab
Grade
Military
Series
PT
Features
Backshell, Cable Clamp
Packaging
Bag
Shielding
Unshielded
Orientation
N (Normal)
Part Status
Active
Termination
Crimp
Applications
Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military
Shell Finish
Olive Drab Chromate over Cadmium
Mounting Type
Free Hanging (In-Line)
Qualification
MIL-DTL-26482 Series I
Connector Type
Receptacle, Male Pins
Fastening Type
Bayonet Lock
Shell Material
Aluminum
Voltage Rating
600VAC
Insert Material
Neoprene
Contact Material
Copper Alloy
Primary Material
Metal
Ingress Protection
Environment Resistant
Base Product Number
MS3121F16
Number of Positions
26
Shell Size - Insert
16-26
Current Rating (Amps)
7.5A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
| Attribute | Value |
|---|---|
| Mfr | Amphenol Aerospace Operations |
| Color | Olive Drab |
| Grade | Military |
| Series | PT |
| Features | Backshell, Cable Clamp |
| Packaging | Bag |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Part Status | Active |
| Termination | Crimp |
| Applications | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Mounting Type | Free Hanging (In-Line) |
| Qualification | MIL-DTL-26482 Series I |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Bayonet Lock |
| Shell Material | Aluminum |
| Voltage Rating | 600VAC |
| Insert Material | Neoprene |
| Contact Material | Copper Alloy |
| Primary Material | Metal |
| Ingress Protection | Environment Resistant |
| Base Product Number | MS3121F16 |
| Number of Positions | 26 |
| Shell Size - Insert | 16-26 |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
